Brand: Belden
|
SKU:
B5502UE-1000

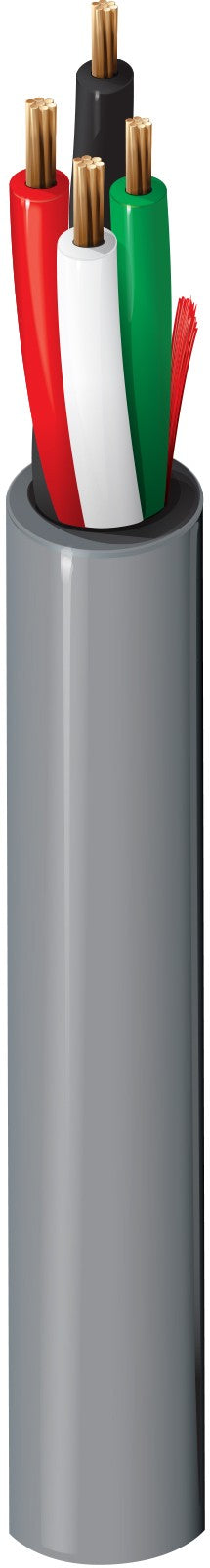

Belden 5502UE 0081000 | Security And Alarm Cable, 22 Awg, 4 Stranded Bare Copper Conductors, PVC Jacket, 1000’ Reel
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5502UE 0081000 | Security And Alarm Cable, 22 Awg, 4 Strande...
Regular price
$1.46
Unit price
Description
Description
Belden 5502UE 0081000 | Security And Alarm Cable, 22 Awg, 4 Stranded Bare Copper Conductors, PVC Jacket, 1000’ Reel
22 AWG Bare copper conductors, PP insulation, PVC jacket with ripcord. Sequential footage marking every two feet.
Applications
For residential, light commercial and institutional applications.
Specifications
Specifications
Belden - 5502UE 0081000 - Applications
- Security System
- Intercom/PA
- Audio/Speaker
- Power-Limited Controls
Belden - 5502UE 0081000 - Specifications
| Conductor Count | 4 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Riser |
| Insulation Material | PP-Polypropylene |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 Riser |
| Screen/Shield | No |
| UNSPSC Code | 26121524 |
| Size | 22 AWG |
| Stranding | 7x30 |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
| Putup Type | Reel |
