Belden 5502UE 0081000 | Security & Sound Cable, #22-4c Bare Cop...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B5502UE-1000/VIO
Regular price
$1.46
Unit price
Description
Description

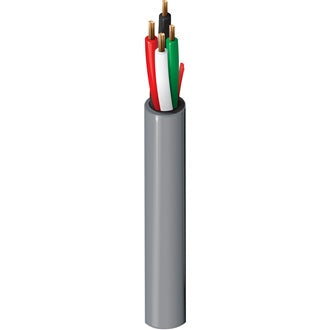

Belden 5502UE 0081000 | Security & Sound Cable, #22-4c Bare Copper, CMR
Security & Sound Cable, Riser-CMR, 4-22 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord.
Specifications
Specifications
Belden - 5502UE 0081000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | 7x30 |
| UL Temperature | 75°C |
| Stationary Min. | 1.4 in (36 mm) |
| Installation Min. | 1.4 in (36 mm) |
| Max. Pull Tension | 36 lbs (16 kg) |
| Bulk Cable Weight | 13 lbs/1000ft |
| Environmental Suitability | Indoor - Riser, Indoor |
| Flammability / Reaction to Fire | UL 1666 Riser, IEEE 1202 FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark |
| UK Regulation Compliance | UKCA Mark |
| Plenum Number | 6502UE |
| Conductor Count | 4 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Riser |
| Insulation Material | Pp-Polypropylene |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Riser |
| Screen/Shield | No |
| UNSPC Code | 26121524 |
