Brand: Belden | SKU: B5504G1-1000-DY0

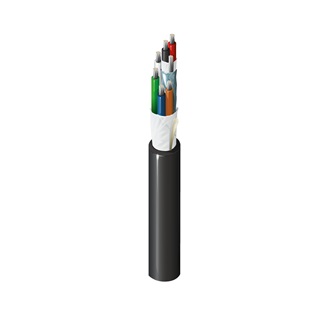

Belden 5504G1 0081000 | Security & Sound Cable, #22-1 Pair, #22-4c TC, Shielded Pair, CM, Water-Blocked

$1.46

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Belden 5504G1 0081000 | Security & Sound Cable, #22-1 Pair, #22-4c TC, Shielded Pair, CM, Water-Blocked

22 AWG TC cond, PVC insul, black/red cond twisted into a pair and shielded w/Beldfoil tape and drain wire, cabled w/additional insul conductors(s) as indicated, water-blocking tape overall, PVC jkt with ripcord. Seq footage marking every two feet.

Specifications

Belden - 5504G1 0081000 - Specifications

Element	Conductor(s),Pair(s)
No. of Elements	4,1
Size	22,22
Stranding	7x30,7x30
UL Temperature	150°C
Stationary Min.	2.59 in (65.8 mm)
Installation Min.	2.59 in
Max. Pull Tension	60.1 lbs (27.3 kg)
Bulk Cable Weight	33 lbs/1000ft
Environmental Suitability	Indoor, Outdoor
Flammability / Reaction to Fire	UL1685 UL Loading, FT4, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 800, CM
CEC / C(UL) Compliance	CM
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
UNSPC Code	26121524

Documents and Downloads

Belden 5504G1 0081000 Data Sheet
