Brand: Belden
|
SKU:
B5508FE-1000-DY3
Belden 5508FE 0081000 | Security & Sound Cable, #22-10c, Bare Copper, Shielded, CMR
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5508FE 0081000 | Security & Sound Cable, #22-10c, Bare C...
Regular price
$1.47
Unit price
Brand: Belden
|
SKU:
B5508FE-1000-DY3
Regular price
$1.47
Unit price
Shipping calculated at checkout.
Description
Description

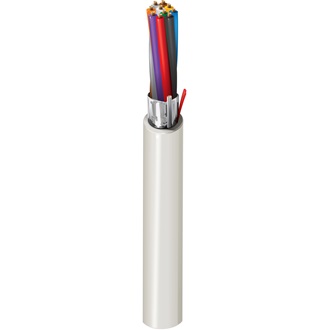

Belden 5508FE 0081000 | Security & Sound Cable, #22-10c, Bare Copper, Shielded, CMR
Security & Sound Cable, Riser-CMR, 10-22 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord.
Specifications
Specifications
Belden - 5508FE 0081000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | 7x30 |
| UL Temperature | 75°C |
| Stationary Min. | 2.17 in (55.1 mm) |
| Installation Min. | 2.17 in (55.1 mm) |
| Max. Pull Tension | 96.5 lbs (43.8 kg) |
| Bulk Cable Weight | 32 lbs/1000ft |
| Environmental Suitability | Outdoor |
| Flammability / Reaction to Fire | UL1666 Riser |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6508FE |
| Conductor Count | 10 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Riser |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Riser |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121524 |
