Brand: Belden
|
SKU:
B5543FE-1000-5
Belden 5543FE 0081000 | Security & Sound Cable, #22-4 Pair, Bare Copper, Shielded, CMR
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5543FE 0081000 | Security & Sound Cable, #22-4 Pair, Bar...
Regular price
$1.47
Unit price
Description
Description

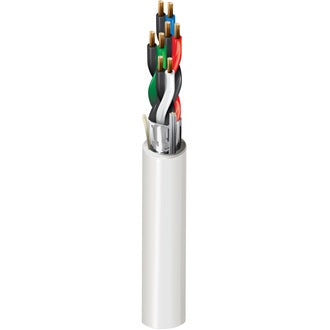

Belden 5543FE 0081000 | Security & Sound Cable, #22-4 Pair, Bare Copper, Shielded, CMR
22 AWG bare copper conductors, PVC insulation, conductors twisted into pairs, multiple pairs cabled together, overall Beldfoil shield (foil side out) and drain wire, overall PVC jacket with rip cord. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 5543FE 0081000 - Specifications
| Element | Pair(s) |
|---|---|
| Stranding | 7x30 |
| UL Temperature | 75°C |
| Stationary Min. | 2.2 in (56 mm) |
| Installation Min. | 2.2 in (56 mm) |
| Max. Pull Tension | 78.3 lbs (35.5 kg) |
| Bulk Cable Weight | 28 lbs/1000ft |
| Flammability / Reaction to Fire | UL 1666 riser, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMR |
| CEC / C(UL) Compliance | CMG |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Plenum Number | 6543FE |
| Conductor Count | 4 Pairs |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Riser |
| Insulation Material | PVC-Polyvinyl Chloride |
| Jacket Material | PVC-Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Riser |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121524 |
