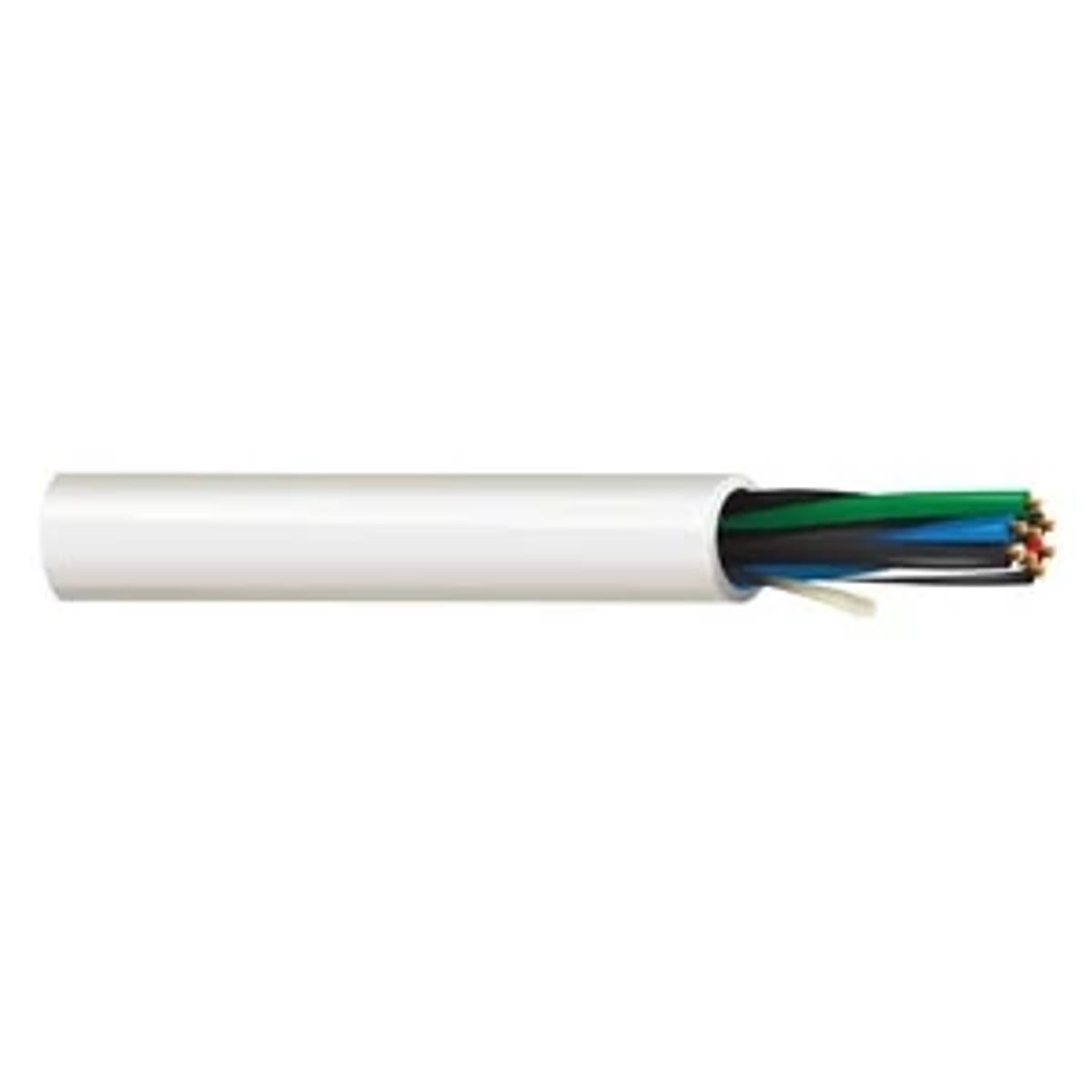

Belden 5543UE 0081000 | Security and Sound Cable, PVC, Grey, 22 AWG, 1000 ft. L, 8-Conductors, Riser
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5543UE 0081000 | Security and Sound Cable, PVC, Grey, 22 AWG...
Description
Description
Temperature Range
Operating Temp Range: -20 °C To +75 °C
Mechanical Characteristics
Bulk Cable Weight: 29.1 lbs/1000ft
Max Recommended Pulling Tension: 72.8 lbs
Min Bend Radius/Minor Axis: 2.2 in
Standards
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU CE Mark: Yes
CA Prop 65 (CJ for Wire Cable): Yes
MII Order #39 (China RoHS): Yes
Flammability, LS0H, Toxicity Testing
CSA Flammability: FT4
UL voltage rating: 300 V RMS
Specifications
Specifications
Specifications
| ECCN | EAR99 |
|---|---|
| Country of Origin | US - United States |
| UNSPSC | 26121600 |
| Color Family | Gray |
| Length | 1000 ft. |
| Color | Gray |
| Cable Type | Riser |
| Conductor Size | 22 AWG |
| Conductor Material | Bare Copper |
| Jacket Material | PVC |
| Insulation Material | Polypropylene |
| No. of Conductors | 8 |
Documents and Downloads
Documents and Downloads
