Brand: Belden
|
SKU:
B5545FE-1000
Belden 5545FE 0081000 | Multi-Conductor - Commercial Applications 6-Pair 22 Awg Pp Fs Frpvc Gray
Regular price
$803.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5545FE 0081000 | Multi-Conductor - Commercial Applications 6...
Regular price
$803.74
Unit price
Description
Description
Belden 5545FE 0081000 | Multi-Conductor - Commercial Applications 6-Pair 22 Awg Pp Fs Frpvc Gray

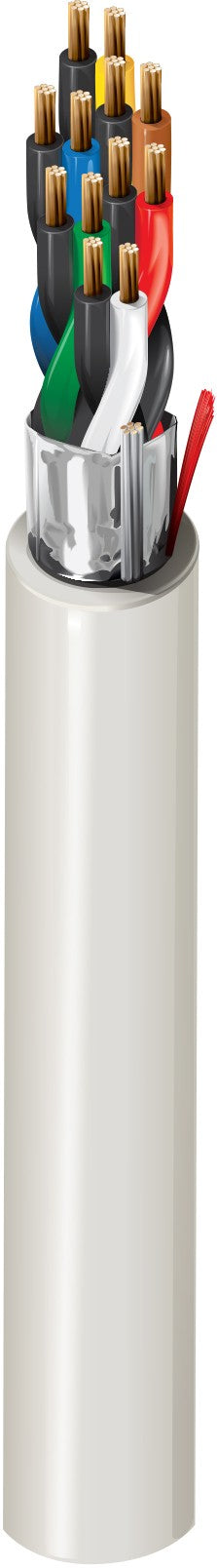

22 AWG bare copper conductors, PP insulation, conductors twisted into pairs, multiple pairs cabled together, overall Beldfoil shield (foil side out) and drain wire, overall PVC jacket with rip cord. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 5545FE 0081000 - Applications
- Security System
- Intercom/Pa
- Audio/Speaker
- Power-Limited Controls
- Noisy Environment
Belden - 5545FE 0081000 - Specifications
| Conductor Count | 6 Pairs |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Riser |
| Insulation Material | Pp-Polypropylene |
| Jacket Material | Pvc-Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 Riser |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121524 |
| Stranding | 7x30 |
| Flammability / Reaction to Fire | UL 1666 riser, FT4 |
| NEC / UL Compliance | Article 800, CMR |
| Color | Gray |
| UPC | 612825164401 |
