Loading...
Brand: Belden
|
SKU:
B5T00UP-0

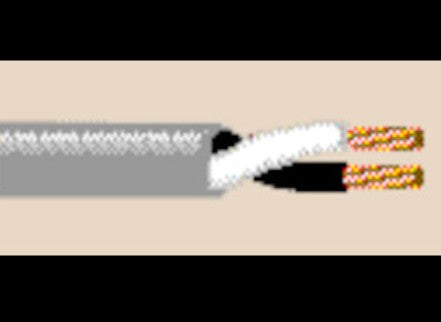

Belden 5T00UP 0101000 | Audio Cable, 10 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Regular price
$2,290.27
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 5T00UP 0101000 | Audio Cable, 10 AWG, Stranded, 2, Bare Copp...
Regular price
$2,290.27
Unit price
Brand: Belden
|
SKU:
B5T00UP-0
Regular price
$2,290.27
Unit price
Description
Description
Belden 5T00UP 0101000 | Audio Cable, 10 AWG, Stranded, 2, Bare Copper, 1000 ft. L
Audio Cable; 10 AWG; Stranded; 2 Conductor; Bare Copper; 1000 ft. Length; 65x28 Str; Black PVC with Ripcord Jacket; PVC Insulation; CL2; 150 V; Black, White; Unshielded; -20 to +75 C; 0.356 in. Nominal Outside Diameter
Specifications
Specifications
Belden - 5T00UP 0101000 - Product Categories
- Electronic Wire and Cable
- Sound and Security Cable
- Audio/Visual Cable
Belden - 5T00UP 0101000 - Applications
- Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls
Belden - 5T00UP 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 5T00UP 0101000 |
| Item Description | Audio Cable, 10 AWG, Stranded, 2, Bare Copper, 1000 ft. L |
| Amperage | 27.8 A |
| Approval Listings | Ul 1685, Ce Marked |
| Bend Radius | 3.6 In. |
| Capacitance | 26 Pf/Ft. |
| Color Code | Black, White |
| Conductor Count | 2 Conductor |
| Conductor Material | Bare High-Conductivity Copper Conductors |
| Conductor Size | 10 Awg |
| Conductor Stranding | 65 Strands Per Conductor |
| Conductor Type | Stranded |
| Inductance | 0.15 ?h/Ft. |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacket Color | Black |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cm |
| Length | 1000 Ft. |
| Nec Rating | Ul Listed Art 725 Class 2 |
| Nominal O.D. | 0.356 In. |
| Package Type | Reel |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Commercial Audio Cable |
| Pulling Force | 260 Lbs. |
| Resistance | 1.03 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield | No |
| Shield Type | Unshielded |
| Shielded | Utp |
| Temperature Rating | 75 Deg C |
| Thickness | 0.026 In. |
| Voltage | 150 V |
| Environmental Suitability | Indoor (Not Riser or Plenum), Indoor |
