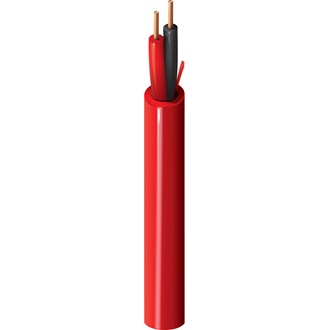

Belden 6020UL 0021000 | Fire Alarm Cable, #12-2C Bare Copper, FPLP
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6020UL-1000/BLK
Regular price
$1.46
Unit price
Description
Description
Belden 6020UL 0021000 | Fire Alarm Cable, #12-2C Bare Copper, FPLP
12 AWG bare copper conductors, Flamarrest insulation, cabled together, Flamarrest jacket with ripcord, shielded version has overall Beldfoil shield tape (foil side out) and drain wire, sequential footage marking every two feet.
Specifications
Specifications
Belden - 6020UL 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 12 AWG |
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 1.84 in (46.7 mm) |
| Installation Min. | 1.84 in (46.7 mm) |
| Max. Pull Tension | 158 lbs (71.7 kg) |
| Bulk Cable Weight | 50 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum) |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| Non-Plenum Number | 5020UL |
| UNSPC Code | 26121613 |
