Belden 6100UL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, FPLP
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6100UL-1000/WHT
Regular price
$1.46
Unit price
Description
Description

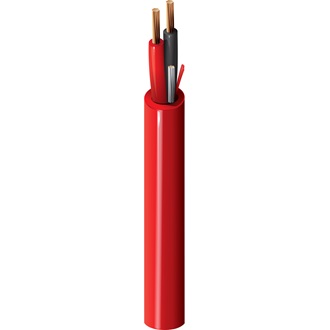

Belden 6100UL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, FPLP
Fire Alarm Cable, Plenum-FPLP, 2-14 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord.
Specifications
Specifications
Belden - 6100UL 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | 19x26 |
| UL Temperature | 75°C |
| Stationary Min. | 1.71 in (43.4 mm) |
| Installation Min. | 1.71 in |
| Max. Pull Tension | 95 lbs (43 kg) |
| Bulk Cable Weight | 35 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | NFPA 262 (UL910) |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5100UL |
| Conductor Count | 2 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 14 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Jacket Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 Plenum - Fire Alarm |
| Screen/Shield | No |
| UNSPC Code | 26121613 |
Documents and Downloads
Documents and Downloads
