Brand: Belden | SKU: B6120UL-1000/BLK

Belden 6120UL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, FPLP

$1.46

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

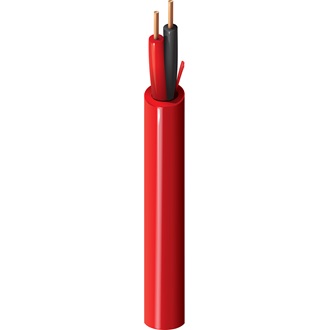

Belden 6120UL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, FPLP

14 AWG bare copper conductors, Flamarrest insulation, cabled together, Flamarrest jacket with ripcord, shielded version has overall Beldfoil shield tape (foil side out) and drain wire, sequential footage marking every two feet.

Specifications

Belden - 6120UL 0021000 - Specifications

Element	Conductor(s)
Stranding	Solid
UL Temperature	75°C
Stationary Min.	1.6 in (41 mm)
Installation Min.	1.6 in (41 mm)
Max. Pull Tension	99.4 lbs (45.1 kg)
Bulk Cable Weight	34 lbs/1000ft
Environmental Suitability	Indoor - Plenum, Indoor
Flammability / Reaction to Fire	NFPA 262, UL 910 (Plenum)
NEC / UL Compliance	Article 760, FPLP
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s)	California State Fire Marshall
Non-Plenum Number	5120UL
Conductor Count	2 Conductors
Conductor Material	Bare Copper
Conductor Size	14 Awg (American Wire Gauge)
Conductor Type	Solid Conductor
Fire Rating	Plenum
Insulation Material	FrPVC-Flame Retardant Polyvinyl Chloride
Jacket Material	LsPVC-Low Smoke Polyvinyl Chloride
Nec Rating	Ul Listed Art 760 Plenum - Fire Alarm
Screen/Shield	No
UNSPC Code	26121613

Documents and Downloads

Belden 6120UL 0021000 Data Sheet
