Brand: Belden
|
SKU:
B6120UL-4
Belden 6120UL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, FPLP
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6120UL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, FPLP
Regular price
$1.46
Unit price
Description
Description

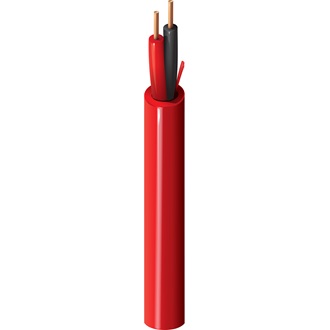

Belden 6120UL 0021000 | Fire Alarm Cable, #14-2C Bare Copper, FPLP
14 AWG bare copper conductors, Flamarrest insulation, cabled together, Flamarrest jacket with ripcord, shielded version has overall Beldfoil shield tape (foil side out) and drain wire, sequential footage marking every two feet.
Specifications
Specifications
Belden - 6120UL 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 1.6 in (41 mm) |
| Installation Min. | 1.6 in (41 mm) |
| Max. Pull Tension | 99.4 lbs (45.1 kg) |
| Bulk Cable Weight | 34 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum) |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| Non-Plenum Number | 5120UL |
| Conductor Count | 2 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 14 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Plenum |
| Insulation Material | FrPVC-Flame Retardant Polyvinyl Chloride |
| Jacket Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 Plenum - Fire Alarm |
| Screen/Shield | No |
| UNSPC Code | 26121613 |
