Belden 6220FK 0021000 | Fire Alarm Cable, #16-2C Bare Copper, Shiel...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6220FK-1000-3
Regular price
$1.46
Unit price
Description
Description

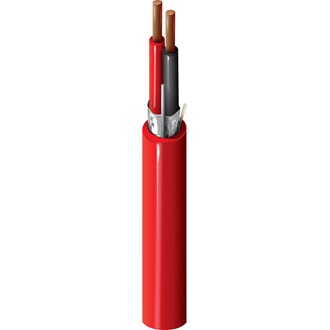

Belden 6220FK 0021000 | Fire Alarm Cable, #16-2C Bare Copper, Shielded, FPLP
Fire Alarm Cable, Plenum-FPLP, 2-16 AWG solid bare copper conductors with FEP insulation, overall Beldfoil® shield, Flamarrest® jacket with ripcord.
Specifications
Specifications
Belden - 6220FK 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 16 AWG |
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 3.15 in (80.0 mm) |
| Installation Min. | 3.15 in |
| Max. Pull Tension | 75 lbs (34 kg) |
| Bulk Cable Weight | 33 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | NFPA 262 (UL910) |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| UNSPC Code | 26121613 |
