Description
Description

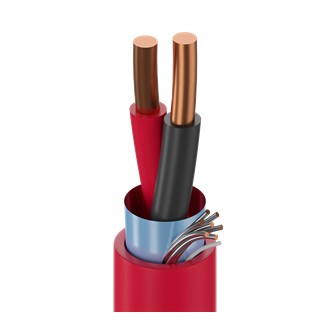

Belden 6220FL 0021000 | Fire Alarm Cable, #16-2C Bare Copper, Shielded, FPLP
Bare copper multi-conductors, Flamarrest insulation, cabled together, red Flamarrest jacket with rip cord. Shielded version has overall Beldfoil shield tape (foil side out) and drain wire. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 6220FL 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 2.67 in (67.8 mm) |
| Installation Min. | 2.67 in (67.8 mm) |
| Max. Pull Tension | 68 lbs (31 kg) |
| Bulk Cable Weight | 26 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| Non-Plenum Number | 5220FL |
| Conductor Count | 2 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Plenum |
| Insulation Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Jacket Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 Plenum - Fire Alarm |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
