Description
Description
Belden 6220FL | Fire Alarm Cable, #16-2C Bare Copper, Shielded, FPLP

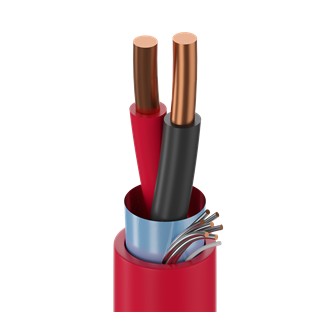

Fire Alarm Cable, Plenum-FPLP, 2-16 AWG solid bare copper conductors with Flamarrest® insulation, overall Beldfoil® shield, Flamarrest® jacket with ripcord.
Specifications
Specifications
Belden - 6220FL - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 2 |
| Size | 16 AWG |
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 2.67 in (67.8 mm) |
| Installation Min. | 2.67 in (67.8 mm) |
| Max. Pull Tension | 68 lbs (31 kg) |
| Bulk Cable Weight | 26 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| Non-Plenum Number | 5220FL |
