Brand: Belden
|
SKU:
B6220UL-1000/BRN
Belden 6220UL 0021000 | Fire Alarm Cable, #16-2C Bare Copper, FPLP
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6220UL 0021000 | Fire Alarm Cable, #16-2C Bare Copper, FPLP
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6220UL-1000/BRN
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description

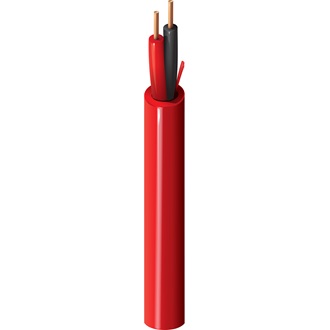

Belden 6220UL 0021000 | Fire Alarm Cable, #16-2C Bare Copper, FPLP
Fire Alarm Cable, Plenum-FPLP, 2-16 AWG solid bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord.
Specifications
Specifications
Belden - 6220UL 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 1.32 in (33.5 mm) |
| Installation Min. | 1.32 in (33.5 mm) |
| Max. Pull Tension | 62 lbs (28 kg) |
| Bulk Cable Weight | 22 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum) |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s) | California State Fire Marshall |
| Non-Plenum Number | 5220UL |
| Conductor Count | 2 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Plenum |
| Insulation Material | FrPVC-Flame Retardant Polyvinyl Chloride |
| Jacket Material | FrPVC-Flame Retardant Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 Plenum - Fire Alarm |
| Screen/Shield | No |
| UNSPC Code | 26121613 |
