Brand: Belden
|
SKU:
B6220UL-500
Belden 6220UL 002500 | Multi-Conductor - Commercial Applications - 2 Conductors Cabled 2 16 Awg Flrst Red
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6220UL 002500 | Multi-Conductor - Commercial Applications - ...
Regular price
$1.46
Unit price
Description
Description

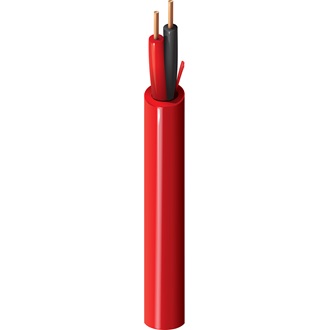

Belden 6220UL 002500 | Multi-Conductor - Commercial Applications - 2 Conductors Cabled 2 16 Awg Flrst Red
16 AWG bare copper conductors, Flamarrest insulation, cabled together, Flamarrest jacket with ripcord, sequential footage marking every two feet.
Specifications
Specifications
Belden - 6220UL 002500 - Applications
- Fire Alarm
- Monitor/Detection
Belden - 6220UL 002500 - Specifications
| Conductor Count | 2 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Plenum |
| Insulation Material | FRPVC-Flame Retardant Polyvinyl Chloride |
| Jacket Material | Frpvc-Flame Retardant Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 760 Plenum - Fire Alarm |
| Screen/Shield | No |
| UNSPSC Code | 26121613 |
| Size | 16 AWG |
| Stranding | Solid |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum) |
