Brand: Belden | SKU: 62P1824

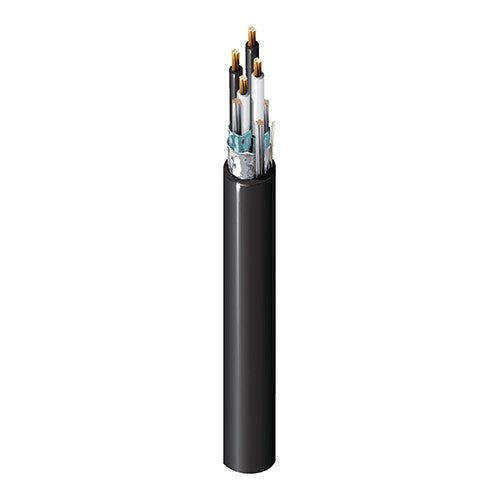

Belden 62P1824 | Instrandedumentation Cable, 300V, 18 Awg -24 Pair Stranded B Conductor Pv Conductor Ind+O/A Shield

$6.34

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Belden 62P1824 | Instrandedumentation Cable, 300V, 18 Awg -24 Pair Stranded B Conductor Pv Conductor Ind+O/A Shield

Specifications

Belden - 62P1824 - Applications

Computer Communications
Low Voltage Analog Signals (4-20Ma; 0-10V)
Low Voltage Digital Control (24V)
Line Level Audio
Panel Wiring
Serial Communication (Rs-485 Standard) Comprising Of Plcs
Scada Within Noisy Environments Over Long Distance

Belden - 62P1824 - Specifications

Armor	No
Conductor Count	24 Pair
Conductor Size	18 Awg (American Wire Gauge)
Conductor Type	Stranded Conductor
Insulation Material	Pvc-Polyvinyl Chloride
Jacketing Material	Pvc-Polyvinyl Chloride
Screen/Shield Type	Both Individual And Overall Shields
Screen/Shield	Yes - This Has A Shield
Thermocouple	No
UNSPSC Code	26121642
Pair	24
Material	BC - Bare Copper
Size	18
UL Temperature	90°C Dry, 75°C Wet
Operating Temperature	-30°C To +90°C Dry, +75°C Wet
Stationary Min.	5.7 in (140 mm)
Installation Min.	5.7 in (140 mm)
Bulk Cable Weight	610 lbs/1000ft
Environmental Suitability	Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire	UL 1685 UL loading, IEEE 1202 FT4
Putup Type	Reel
UPC	612825359609

Documents and Downloads

Belden 62P1824 Data Sheet
