Brand: Belden
|
SKU:
B6302FE-500
Belden 6302FE 877500 | Multi-Conductor - Commercial Applications 4 18 Awg Flrst Fs Flrst Natural
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6302FE 877500 | Multi-Conductor - Commercial Applications 4 ...
Regular price
$1.46
Unit price
Description
Description
Belden 6302FE 877500 | Multi-Conductor - Commercial Applications 4 18 Awg Flrst Fs Flrst Natural

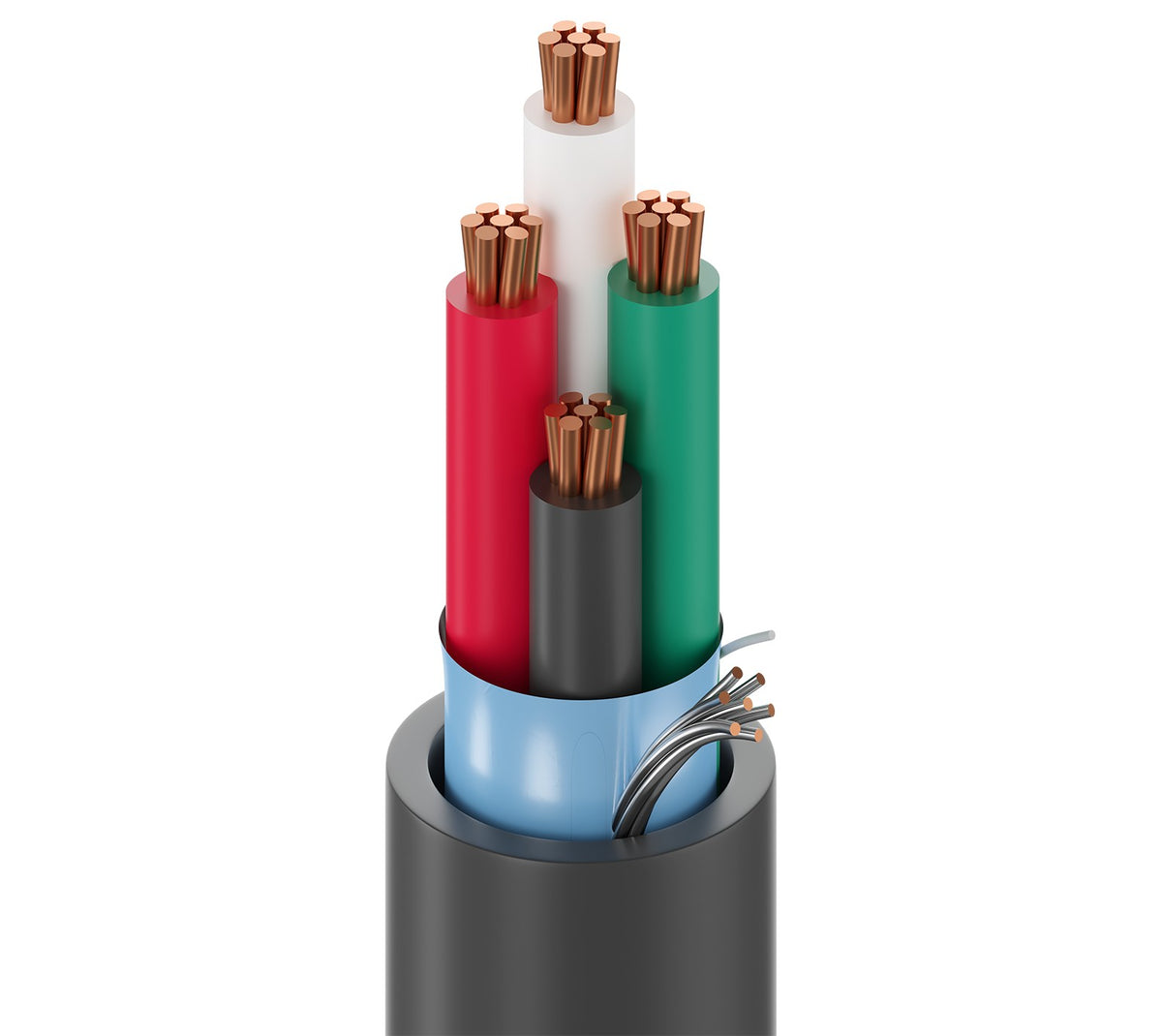

18 AWG bare copper conductors, Flamarrest insulation, conductors cabled, overall Beldfoil tape shield (foil side out) and drain wire, Flamarrest jacket with ripcord. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 6302FE 877500 - Applications
- Security System
- Intercom/Pa
- Audio/Speaker
- Noisy Environment
Belden - 6302FE 877500 - Specifications
| Conductor Count | 4 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Jacket Material | Lspvc-Low Smoke Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 Plenum |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121524 |
| Stranding | 7x26 |
| Stationary Min. | 1.9 in (48 mm) |
| Installation Min. | 1.9 in (48 mm) |
| Color | Natural |
