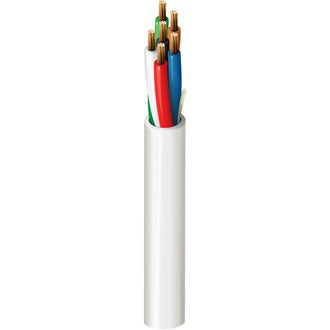

Belden 6304UE | Security & Sound Cable, #18-6C, Bare Copper, CMP
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6304UE-1000/GRN
Regular price
$1.46
Unit price
Description
Description
Belden 6304UE | Security & Sound Cable, #18-6C, Bare Copper, CMP
Security & Sound Cable, Plenum-CMP, 6-18 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord.
Specifications
Specifications
Belden - 6304UE - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 6 |
| Size | 18 AWG |
| Stranding | 7x26 |
| UL Temperature | 75°C |
| Stationary Min. | 2.2 in (56 mm) |
| Installation Min. | 2.2 in (56 mm) |
| Max. Pull Tension | 134 lbs (60.8 kg) |
| Bulk Cable Weight | 43 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5304UE |
