Belden 6320UL 0021000 | Fire Alarm Cable, #18-2C Bare Copper, FPLP
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6320UL-1000/WHT
Regular price
$1.46
Unit price
Description
Description

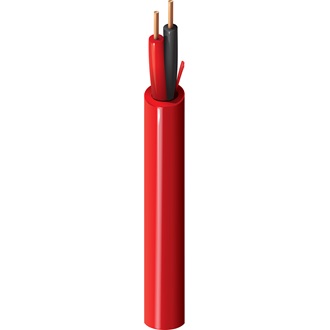

Belden 6320UL 0021000 | Fire Alarm Cable, #18-2C Bare Copper, FPLP
18 AWG bare copper conductors, Flamarrest insulation, cabled together, Flamarrest jacket with ripcord, shielded version has overall Beldfoil shield tape (foil side out) and drain wire, sequential footage marking every two feet.
Specifications
Specifications
Belden - 6320UL 0021000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | Solid |
| UL Temperature | 75°C |
| Stationary Min. | 1.15 in (29.2 mm) |
| Installation Min. | 1.15 in (29.2 mm) |
| Max. Pull Tension | 39 lbs (18 kg) |
| Bulk Cable Weight | 15 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum) |
| NEC / UL Compliance | Article 760, FPLP |
| European Directive Compliance | EU CE Mark |
| Other Standard Compliance(s) | California State Fire Marshall |
| Non-Plenum Number | 5320UL |
| Conductor Count | 2 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Plenum |
| Insulation Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Jacket Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 760 Plenum - Fire Alarm |
| Screen/Shield | No |
| UNSPC Code | 26121613 |
