Brand: Belden
|
SKU:
B6320UL-1000

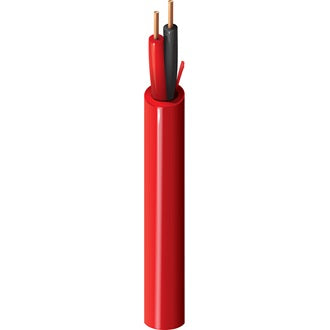

Belden 6320UL 0021000 | Multi-Conductor - Commercial Applications - 2 Conductors Cabled 2 18 Awg Flrst Red
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6320UL 0021000 | Multi-Conductor - Commercial Applications -...
Regular price
$1.46
Unit price
Description
Description
Belden 6320UL 0021000 | Multi-Conductor - Commercial Applications - 2 Conductors Cabled 2 18 Awg Flrst Red
18 AWG bare copper conductors, Flamarrest insulation, cabled together, Flamarrest jacket with ripcord, shielded version has overall Beldfoil shield tape (foil side out) and drain wire, sequential footage marking every two feet.
Specifications
Specifications
Belden - 6320UL 0021000 - Applications
- Fire Alarm
- Monitor/Detection
Belden - 6320UL 0021000 - Specifications
| Conductor Count | 2 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Plenum |
| Insulation Material | LSPVC-Low Smoke Polyvinyl Chloride |
| Jacket Material | Lspvc-Low Smoke Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 760 Plenum - Fire Alarm |
| Screen/Shield | No |
| UNSPSC Code | 26121613 |
| Size | 18 AWG |
| Stranding | Solid |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum) |
