Belden 6343UE | Security & Sound Cable, #18-4 Pair, Bare Copper...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6343UE-DY2
Regular price
$1.46
Unit price
Description
Description

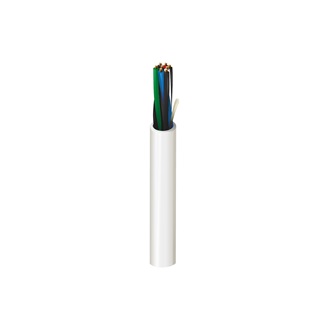

Belden 6343UE | Security & Sound Cable, #18-4 Pair, Bare Copper, CMP
Security & Sound Cable, Plenum-CMP, 4-18 AWG stranded bare copper pairs with Flamarrest® insulation, Flamarrest® jacket with ripcord.
Specifications
Specifications
Belden - 6343UE - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 4 |
| Size | 18 AWG |
| Stranding | 7x26 |
| UL Temperature | 75°C |
| Stationary Min. | 3.14 in (79.8 mm) |
| Installation Min. | 3.14 in |
| Max. Pull Tension | 179.2 lbs (81.28 kg) |
| Bulk Cable Weight | 61 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262 (UL 910), FT6 |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5343UE |
Documents and Downloads
Documents and Downloads
