Brand: Belden
|
SKU:
B643948-U1000-4

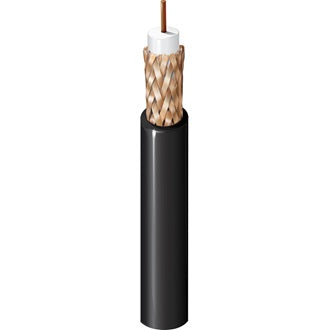

Belden 643948 877U1000 | Surveillance CCTV, RG-59 #20 Solid Bare Copper, FFEP Core, BC Braid, Flamarrest® Jacket CMP
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 643948 877U1000 | Surveillance CCTV, RG-59 #20 Solid Bare Co...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B643948-U1000-4
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Belden 643948 877U1000 | Surveillance CCTV, RG-59 #20 Solid Bare Copper, FFEP Core, BC Braid, Flamarrest® Jacket CMP
Security Coaxial cable Plenum-rated, CMP FT6 rated, bare copper or copper-covered steel conductor, foam FEP insulation, bare copper braid shield. Natural Flamarrest jacket. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 643948 877U1000 - Specifications
| UL Temperature | 75°C |
|---|---|
| Environmental Suitability | Indoor - Plenum, Indoor |
| Sustainability | CA Prop 65, Product Lens™, Environmental Product Declaration (EPD) Available |
| Flammability / Reaction to Fire | NFPA 262 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Coax Construction | Coaxial |
| Coax Type | Rg 59 |
| Conductor Material | Bare Copper |
| Conductor Type | Solid Conductor |
| Dielectric Material | Ffep-Foamed (Cellular) |
| Fire Rating | Plenum |
| Flooded | No Not Flooded Over Braid |
| Impedance | 75 Ohm Nominal Impedance |
| Jacket Material | FrPVC-Flame Retardant Polyvinyl Chloride |
| Outdoor | No Not Outdoor Grade Material |
| Screen/Shield Type | Braid Only |
| UNSPC Code | 26121606 |
