Brand: Belden
|
SKU:
B6441FE-1000
Belden 6441FE 8771000 | Multi-Conductor - Commercial Applications 2-Pair 20 Awg Flrst Fs Flrst Natural
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6441FE 8771000 | Multi-Conductor - Commercial Applications 2...
Regular price
$1.46
Unit price
Description
Description

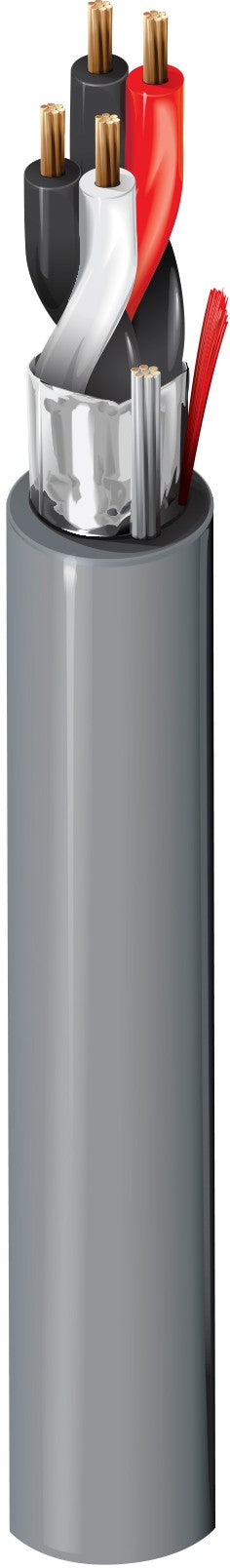

Belden 6441FE 8771000 | Multi-Conductor - Commercial Applications 2-Pair 20 Awg Flrst Fs Flrst Natural
20 AWG bare copper conductors, Flamarrest insulation, twisted into pairs, multiple pairs cabled together, overall Beldfoil shield tape (foil side out) w/drain wire, Flamarrest jacket with ripcord. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 6441FE 8771000 - Applications
- Security System
- Intercom/Pa
- Audio/Speaker
- Power-Limited Controls
- Noisy Environment
Belden - 6441FE 8771000 - Specifications
| Conductor Count | 2 Pairs |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 20 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Jacket Material | Lspvc-Low Smoke Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 Plenum |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121524 |
| Stranding | 7x28 |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | NFPA 262 (UL910), FT6 |
| Color | Natural |
| UPC | 612825176930 |
