Belden 6502UE | Security & Sound Cable, #22-4c Bare Copper, CMP
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6502UE-1000-DYT
Regular price
$1.46
Unit price
Description
Description

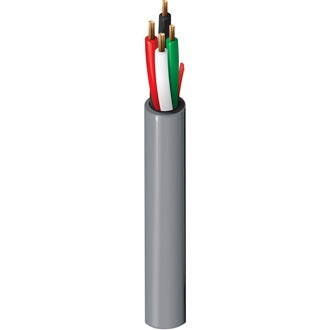

Belden 6502UE | Security & Sound Cable, #22-4c Bare Copper, CMP
Security & Sound Cable, Plenum-CMP 4-22 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord.
Specifications
Specifications
Belden - 6502UE - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 4 |
| Size | 22 AWG |
| Stranding | 7x30 |
| UL Temperature | 75°C |
| Stationary Min. | 1.39 in (35.3 mm) |
| Installation Min. | 1.39 in (35.3 mm) |
| Max. Pull Tension | 36 lbs (16 kg) |
| Bulk Cable Weight | 15 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5502UE |
