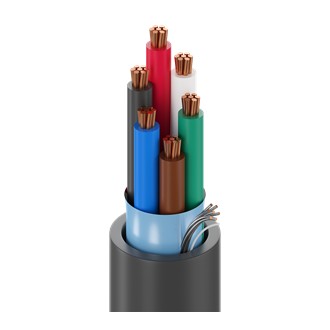

Belden 6504FE 8771000 | Security & Sound Cable, #22-6c Bare Copper, Shielded, CMP
22 AWG bare copper conductors, Flamarrest insulation, conductors cabled, overall Beldfoil tape shield (foil side out) and drain wire, Flamarrest jacket with ripcord. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 6504FE 8771000 - Specifications
| Element | Conductor(s) |
|---|---|
| Stranding | 7x30 |
| UL Temperature | 75°C |
| Stationary Min. | 1.75 in (44.5 mm) |
| Installation Min. | 1.75 in (44.5 mm) |
| Max. Pull Tension | 60 lbs (27 kg) |
| Bulk Cable Weight | 24 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5504FE |
| Conductor Count | 6 Conductors |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Jacket Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Plenum |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121524 |
