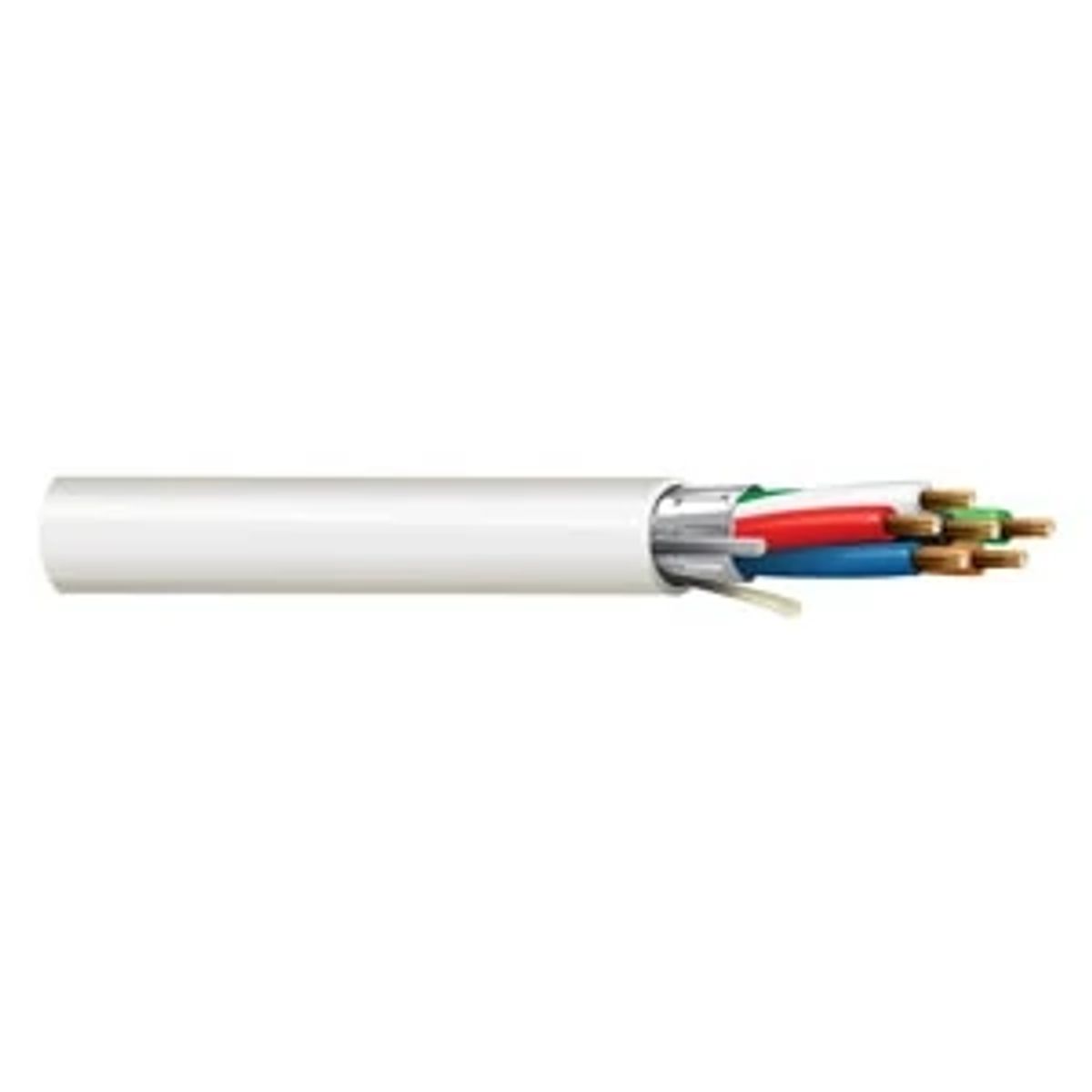

Belden 6504FE 877500 | Security and Alarm Cable, Low Smoke PVC, Natural, 22 AWG, 500 ft. L, 6-Conductors, Plenum, Shielded
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6504FE 877500 | Security and Alarm Cable, Low Smoke PVC, Nat...
Description
Description
Temperature Range
UL Temp Rating: 75 °C
Operating Temp Range: 0 °C To +75 °C
Mechanical Characteristics
Bulk Cable Weight: 24.4 lbs/1000 Ft.
Max Recommended Pulling Tension: 60.1 lbs
Min Bend Radius/Minor Axis: 1.8 in.
Standards
NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca
Applicable Environmental and Other Programs
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
CA Prop 65 (CJ for Wire Cable): Yes
Suitability
Suitability - Indoor: Yes
Flammability, LS0H, Toxicity Testing
C(UL) Flammability: FT6
UL Flammability: NFPA 262
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS
Specifications
Specifications
Specifications
| ECCN | EAR99 |
|---|---|
| Country of Origin | US - United States |
| Color Family | Natural |
| Length | 500 ft. |
| Color | Natural |
| Conductor Size | 22 AWG |
| Conductor Material | Bare Copper |
| Jacket Material | Low Smoke PVC |
| Insulation Material | Low Smoke PVC |
| No. of Conductors | 6 |
| Shielded | Aluminum Polyester |
Documents and Downloads
