Belden 6504FE | Security & Sound Cable, #22-6c Bare Copper, Shielded, CMP

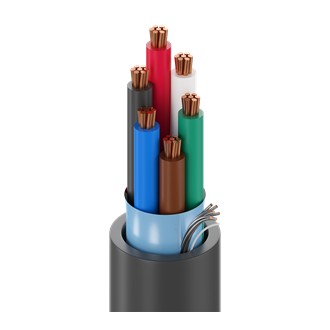

Security & Sound Cable, Plenum-CMP, 6-22 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord.
Specifications
Specifications
Belden - 6504FE - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 6 |
| Size | 22 AWG |
| Stranding | 7x30 |
| UL Temperature | 75°C |
| Stationary Min. | 1.75 in (44.5 mm) |
| Installation Min. | 1.75 in (44.5 mm) |
| Max. Pull Tension | 60 lbs (27 kg) |
| Bulk Cable Weight | 24 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5504FE |
