Brand: Belden
|
SKU:
B6504UE-U500

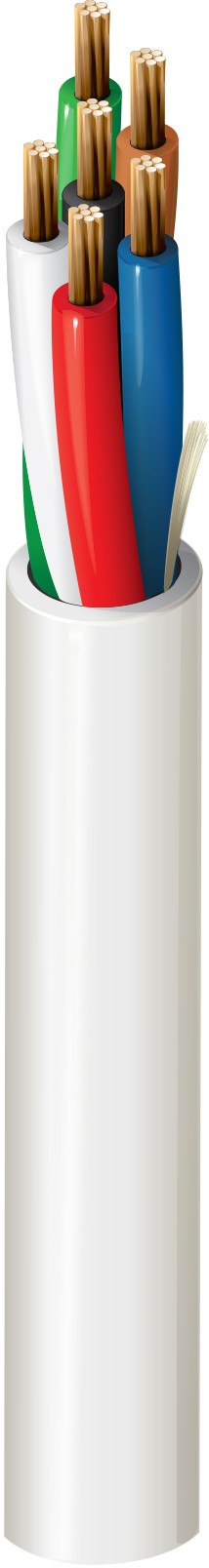

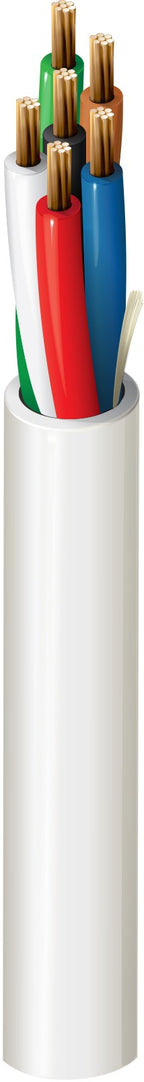

Belden 6504UE 877U500 | Multi-Conductor - Commercial Applications 6 22 Awg Flrst Natural
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6504UE 877U500 | Multi-Conductor - Commercial Applications 6...
Regular price
$1.46
Unit price
Description
Description
Belden 6504UE 877U500 | Multi-Conductor - Commercial Applications 6 22 Awg Flrst Natural
22 AWG bare copper conductors, Flamarrest insulation, conductors cabled, Flamarrest jacket, ripcord. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 6504UE 877U500 - Applications
- Security System
- Intercom/PA
- Audio/Speaker
- Power-Limited Controls
Belden - 6504UE 877U500 - Specifications
| Conductor Count | 6 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | LSPVC-Low Smoke Polyvinyl Chloride |
| Jacket Material | Lspvc-Low Smoke Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 Plenum |
| Screen/Shield | No |
| UNSPSC Code | 26121524 |
| Color | Natural |
| Stranding | 7x30 |
| Material | BC - Bare Copper |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6 |
