Brand: Belden
|
SKU:
B6506FE-02-U1000

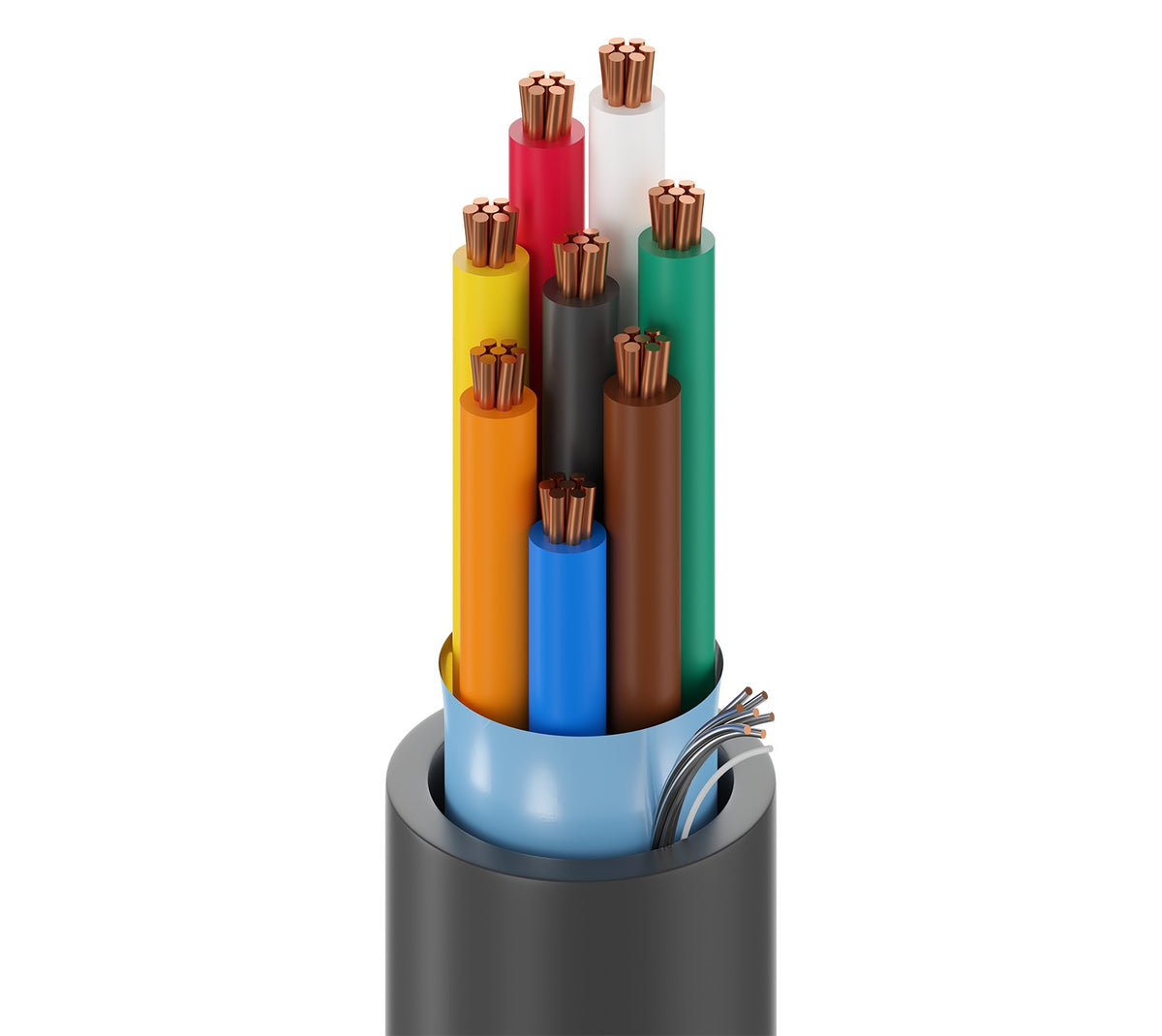

Belden 6506FE 010U1000 | Security And Alarm Cable, Plenum-Cmp, 22 Awg, 8 Stranded Bare Copper Conductors, 1000’ Boxes
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6506FE 010U1000 | Security And Alarm Cable, Plenum-Cmp, 22 A...
Regular price
$1.47
Unit price
Brand: Belden
|
SKU:
B6506FE-02-U1000
Regular price
$1.47
Unit price
Shipping calculated at checkout.
Description
Description
Belden 6506FE 010U1000 | Security And Alarm Cable, Plenum-Cmp, 22 Awg, 8 Stranded Bare Copper Conductors, 1000’ Boxes
Specifications
Specifications
Belden - 6506FE 010U1000 - Applications
- Security System
- Intercom/Pa
- Audio/Speaker
- Power-Limited Controls
- Noisy Environment
Belden - 6506FE 010U1000 - Specifications
| Conductor Count | 8 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Jacket Material | Lspvc-Low Smoke Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 Plenum |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121524 |
| Stranding | 7x30 |
| Stationary Min. | 1.9 in (48 mm) |
| Installation Min. | 1.9 in (48 mm) |
