Brand: Belden
|
SKU:
B6508FE-1000
Belden 6508FE 8771000 | Multi Conductor, Commercial Applications, 22 Awg, 10 Stranded Bare Copper Conductors, 1, 000’ Reel
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6508FE 8771000 | Multi Conductor, Commercial Applications, 2...
Regular price
$1.46
Unit price
Description
Description

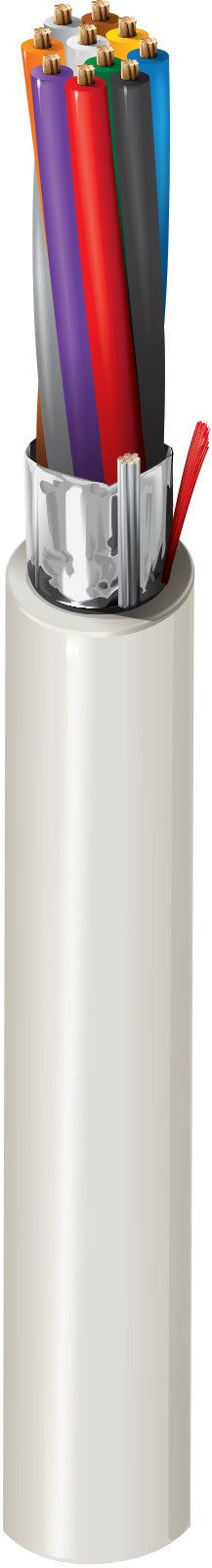

Belden 6508FE 8771000 | Multi Conductor, Commercial Applications, 22 Awg, 10 Stranded Bare Copper Conductors, 1, 000’ Reel
22 AWG bare copper conductors, Flamarrest insulation, conductors cabled, overall Beldfoil tape shield (foil side out) and drain wire, Flamarrest jacket with ripcord. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 6508FE 8771000 - Applications
- Security System
- Intercom/Pa
- Audio/Speaker
- Power-Limited Controls
- Noisy Environment
Belden - 6508FE 8771000 - Specifications
| Conductor Count | 10 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | Lspvc-Low Smoke Polyvinyl Chloride |
| Jacket Material | Lspvc-Low Smoke Polyvinyl Chloride |
| NEC Rating | Ul Listed Art 800 Plenum |
| Screen/Shield | Yes |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPSC Code | 26121524 |
| Stranding | 7x30 |
| Stationary Min. | 2.22 in (56.4 mm) |
| Installation Min. | 2.22 in (56.4 mm) |
| Color | Natural |
