Brand: Belden
|
SKU:
B6522UL-1000
Belden 6522UL 0021000 | Multi-Conductor - Commercial Applications 4 22 Awg Flrst Flrst Red
Regular price
$1.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6522UL 0021000 | Multi-Conductor - Commercial Applications 4...
Regular price
$1.74
Unit price
Description
Description

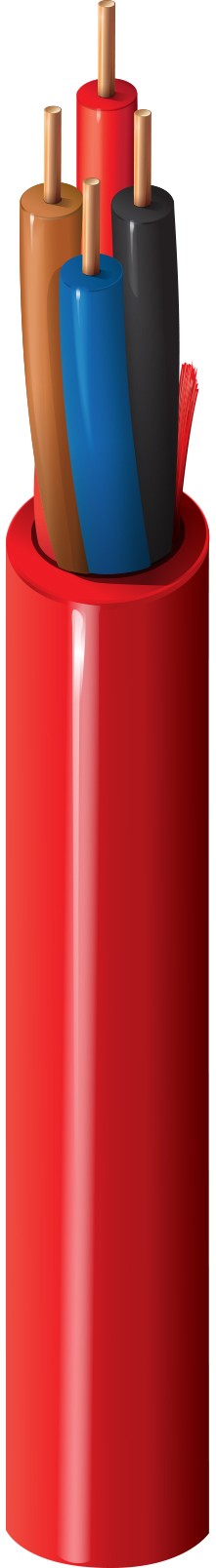

Belden 6522UL 0021000 | Multi-Conductor - Commercial Applications 4 22 Awg Flrst Flrst Red

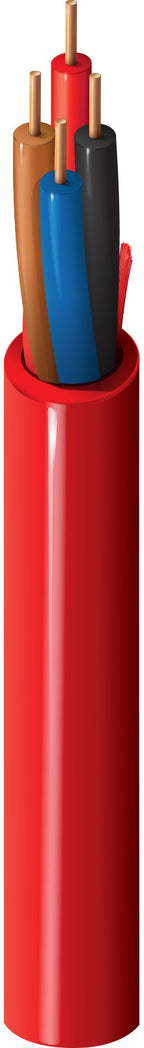

22 AWG bare copper conductors, Flamarrest insulation, cabled together, Flamarrest jacket with ripcord, shielded version has overall Beldfoil shield tape (foil side out) and drain wire, sequential footage marking every two feet.
Specifications
Specifications
Belden - 6522UL 0021000 - Applications
- Fire Alarm
- Monitor/Detection
Belden - 6522UL 0021000 - Specifications
| Conductor Count | 4 Conductors |
|---|---|
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Solid Conductor |
| Fire Rating | Plenum |
| Insulation Material | Frpvc-Flame Retardant Polyvinyl Chloride |
| Jacket Material | Frpvc-Flame Retardant Polyvinyl Chloride |
| NEC Rating | Not Listed By Ul Under Nec |
| Screen/Shield | No |
| UNSPSC Code | 26121524 |
| No. of Elements | 4 |
| Stranding | Solid |
| Stationary Min. | 1.08 in (27.4 mm) |
| Installation Min. | 1.08 in |
| Color | Red |
