Brand: Belden
|
SKU:
B6541FE-U1000-DY7
Belden 6541FE 877U1000 | Security & Sound Cable, #22-2 Pair Bare Copper, Shielded, CMP
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6541FE 877U1000 | Security & Sound Cable, #22-2 Pair Bar...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6541FE-U1000-DY7
Regular price
$1.46
Unit price
Description
Description

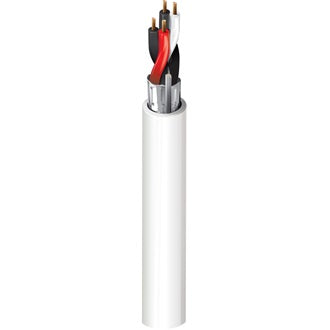

Belden 6541FE 877U1000 | Security & Sound Cable, #22-2 Pair Bare Copper, Shielded, CMP
22 AWG bare copper conductors, Flamarrest insulation, twisted into pairs, multiple pairs cabled together, overall Beldfoil shield tape (foil side out) w/drain wire, Flamarrest jacket with ripcord. Sequential footage marking every two feet.
Specifications
Specifications
Belden - 6541FE 877U1000 - Specifications
| Element | Pair(s) |
|---|---|
| Stranding | 7x30 |
| UL Temperature | 75°C |
| Stationary Min. | 2.0 in (51 mm) |
| Installation Min. | 2.0 in (51 mm) |
| Max. Pull Tension | 42 lbs (19 kg) |
| Bulk Cable Weight | 20 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5541FE |
| Conductor Count | 2 Pairs |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Jacket Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Plenum |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121524 |
