Brand: Belden
|
SKU:
B6542FE-1000-DY3
Belden 6542FE | Security & Sound Cable, #22-3 Pair, Bare Copper, Shielded, CMP
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 6542FE | Security & Sound Cable, #22-3 Pair, Bare Copper...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6542FE-1000-DY3
Regular price
$1.46
Unit price
Description
Description

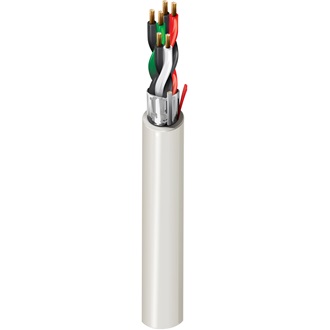

Belden 6542FE | Security & Sound Cable, #22-3 Pair, Bare Copper, Shielded, CMP
Security & Sound Cable, Plenum-CMP, 3-22 AWG stranded bare copper pairs with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord.
Specifications
Specifications
Belden - 6542FE - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 3 |
| Size | 22 |
| Stranding | 7x30 |
| UL Temperature | 75°C |
| Stationary Min. | 2.16 in (54.9 mm) |
| Installation Min. | 2.16 in (54.9 mm) |
| Max. Pull Tension | 60.1 lbs (27.3 kg) |
| Bulk Cable Weight | 26.1 lbs/1000ft |
| Flammability / Reaction to Fire | NFPA 262 (UL910), FT6 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark |
| UK Regulation Compliance | UKCA Mark |
| Non-Plenum Number | 5542FE |
