Belden 6543UE 8771000 | Security & Sound Cable, #22-4 Pair, Bar...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B6543UE-PR
Regular price
$1.46
Unit price
Description
Description

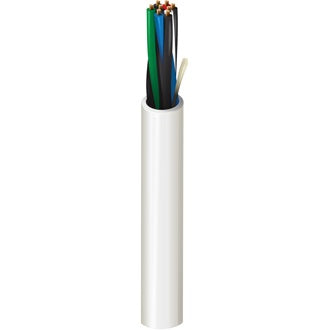

Belden 6543UE 8771000 | Security & Sound Cable, #22-4 Pair, Bare Copper, CMP
Security & Sound Cable, Plenum-CMP 4-22 AWG stranded bare copper pairs with Flamarrest® insulation, Flamarrest® jacket with ripcord.
Specifications
Specifications
Belden - 6543UE 8771000 - Specifications
| Element | Pair(s) |
|---|---|
| Stranding | 7x30 |
| UL Temperature | 75°C |
| Stationary Min. | 2.34 in (59.4 mm) |
| Installation Min. | 2.34 in |
| Max. Pull Tension | 72.8 lbs (33.0 kg) |
| Bulk Cable Weight | 31 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262 (UL 910), FT6 |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 5543UE |
| Conductor Count | 4 Pairs |
| Conductor Material | Bare Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Jacket Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Plenum |
| Screen/Shield | No |
| UNSPC Code | 26121524 |
