Brand: Belden
|
SKU:
B658AMJ-9-1000

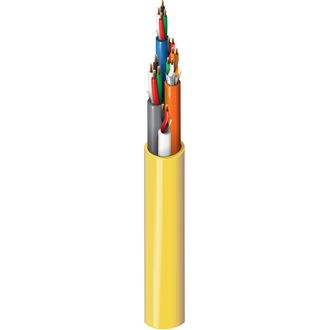

Belden 658AMJ 0091001 | Access Control, 16c (#22-3pr, #18-4c, #22-6c), Only Card Reader Pairs Shielded, Outer Jacket, CMP
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 658AMJ 0091001 | Access Control, 16c (#22-3pr, #18-4c, #22-6...
Regular price
$3.00
Unit price
Description
Description
Access Control Cable, Plenum-CMP, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with Flamarrest insulation, 3-22 AWG pairs have overall Beldfoil shield and Flamarrest jacket,
Specifications
Specifications
Product Overview
| Suitable Applications | Access Control, Security System, Power Limited Controls |
|---|
Mechanical Characteristics
| Max. Pull Tension | 200 lbs |
|---|---|
| Bulk Cable Weight | 102 lbs/1000ft |
Standards and Compliance
| Environmental Suitability | Indoor - Plenum, Indoor |
|---|---|
| Sustainability | Product Lens, Environmental Product Declaration (EPD) Available |
| Flammability / Fire Resistance | NFPA 262, FT6, FT6, IEC 60332-1-2 |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 558AMJ |
