Brand: Belden
|
SKU:
CMP-00424FAXT-5E-02
Belden 7928A 0101000 | DataTuff Cat 5e, 4 Bonded-Pr #24 Sol BC, FEP Ins, FEP Jkt, CMP CMP-LC
Regular price
$7.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 7928A 0101000 | DataTuff Cat 5e, 4 Bonded-Pr #24 Sol BC, FEP...
Regular price
$7.56
Unit price
Brand: Belden
|
SKU:
CMP-00424FAXT-5E-02
Regular price
$7.56
Unit price
Shipping calculated at checkout.
Description
Description

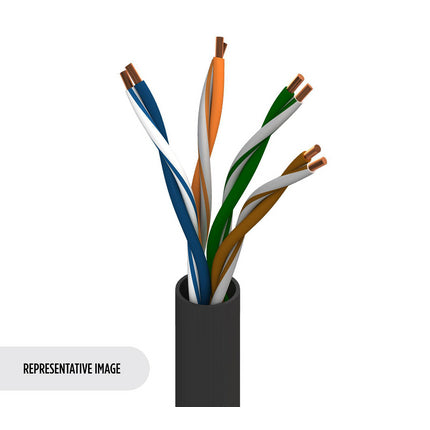

Industrial Ethernet Cat 5e, 4 Bonded-Pair 24AWG (Solid) Bare Copper, FEP Insulation, FEP Outer Jacket, CMP CMP-LC
Specifications
Specifications
Product Overview
| Suitable Applications | extreme temp, exposure to oil and gasoline, harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. |
|---|---|
| Patent | This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/resources/patents. |
Mechanical Characteristics
| Max. Pull Tension | 40 lbs |
|---|---|
| Bulk Cable Weight | 34 lbs/1000ft |
Standards and Compliance
| Environmental Suitability | Plenum, Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
|---|---|
| Flammability / Fire Resistance | NFPA 262 Plenum Flame Test (UL910),UL723 (NFPA 255), FT6, FT6, IEC 60332-1-2 |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| ICEA Compliance | S-90-661-2012 |
| IEEE Compliance | IEEE 802.3bt Type 1, Type 2, Type 3 |
| NEMA Compliance | NEMA WC-63.1 |
| Data Category | Category 5e |
