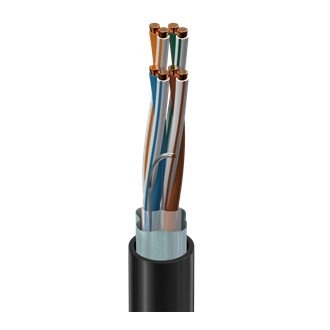

Belden 7929A 0105000 | DataTuff® Cat 5e, 4 Bonded-Pair #24 Solid Bare Copper, PO Insulation, OS, PVC Jacket, CMR CMG
24 AWG Bonded-Pairs solid bare copper conductors, polyolefin insulation, overall Beldfoil shield (100% coverage), industrial grade sunlight- and oil-resistant PVC jacket, drain wire, rip cord. Sequential marking at two foot intervals.
Specifications
Specifications
Belden - 7929A 0105000 - Specifications
| Element | Pair(s) |
|---|---|
| Stranding | Solid |
| Material | BC - Bare Copper |
| UL Temperature | 60°C |
| Installation | -25°C To +75°C |
| Storage | -40°C To +80°C |
| Stationary Min. | 0.5 in (13 mm) |
| Max. Pull Tension | 20 lbs (9.1 kg) |
| Bulk Cable Weight | 32 lbs/1000ft |
| Environmental Suitability | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
| Flammability / Reaction to Fire | UL1666 Riser, FT4, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance | Article 800, CMR, CMX-Outdoor |
| CEC / C(UL) Compliance | CMG |
| Data Category | Category 5e |
| European Directive Compliance | EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16 |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Category | Category 5E |
| Conductor Size | 24 Awg (American Wire Gauge) |
| Shielded | F/Utp - Foiled/Unshielded Twisted Pair |
| Conductor Type | Solid |
| Type | Data |
| Conductor/Pair Count | 4 Pair |
| Fire Rating | Riser |
| Jacket Color | Black |
| UNSPC Code | 26121609 |
