Brand: Belden
|
SKU:
B7985LC
Belden 7985LC 0101000 | Coax - Surveillance And Cctv Applications 18 Awg Ffep Brd Fep Black
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 7985LC 0101000 | Coax - Surveillance And Cctv Applications 1...
Regular price
$3.00
Unit price
Description
Description
Belden 7985LC 0101000 | Coax - Surveillance And Cctv Applications 18 Awg Ffep Brd Fep Black

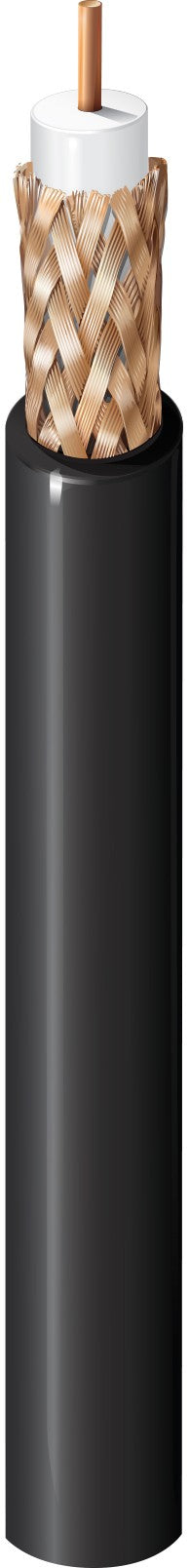

18 AWG bare copper conductor, foam FEP insulation, bare copper braid shield, FEP jacket, sequential footage marking every two feet.
Specifications
Specifications
Belden - 7985LC 0101000 - Applications
- Surveillance
- Cctv Camera
Belden - 7985LC 0101000 - Specifications
| Coax Construction | Coaxial |
|---|---|
| Coax Type | Rg 6 |
| Conductor Material | Bare Copper |
| Screen/Shield Type | Tri Shield (F/B/F) |
| Conductor Type | Solid Conductor |
| Dielectric Material | Ffep-Foamed (Cellular) |
| Fire Rating | Plenum |
| Flooded | No Not Flooded Over Braid |
| Impedance | 75 Ohm Nominal Impedance |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Outdoor | No Not Outdoor Grade Material |
| UNSPSC Code | 26121606 |
| Stranding | Solid |
| Nominal Diameter | 0.04 in |
| Max. Delay Skew | 83 ns/100m |
| Nominal Delay | 1.24 ns/ft |
| UL Temp Rating | 200°C |
| Operating Temperature Range | -40°C To +200°C |
| Color | Black |
