Brand: Belden
|
SKU:
B82240

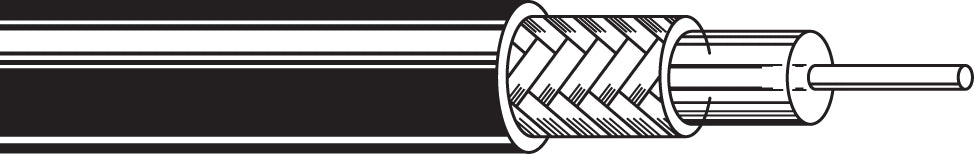

Belden 82240 8771000 | Coaxial Cable, RG58, 1000 ft. L, Braid, Natural, Bare Copper
Regular price
$3,742.83
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 82240 8771000 | Coaxial Cable, RG58, 1000 ft. L, Braid, Natu...
Regular price
$3,742.83
Unit price
Description
Description
Belden 82240 8771000 | Coaxial Cable, RG58, 1000 ft. L, Braid, Natural, Bare Copper
Coaxial Cable; RG58; 1000 ft. Length; Braid; Natural Flamarrest PVC Jacket; Bare Copper; 20 AWG; FEP Insulation; Tinned Copper Shield; 0.159 in. Nominal Outside Diameter; 0 to 75 C; CMP; 53 Ohm; Indoor; 1.6 in.; 1000MHz
Specifications
Specifications
Belden - 82240 8771000 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial and DS3 Cable
- Coaxial Cable
Belden - 82240 8771000 - Applications
- Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
Belden - 82240 8771000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 82240 8771000 |
| Item Description | Coaxial Cable, RG58, 1000 ft. L, Braid, Natural, Bare Copper |
| Bend Radius | 1.6 In. |
| Braid % | 95% Braid Coverage |
| Braid Material | Bare Copper |
| Cable Jacket O.D. | 0.159 |
| Cable/Wire Type | Rg58 |
| Capacitance | 27.4 Pf/Ft. |
| Coax Type | Rg58 |
| Conductor Count | 1 Conductor |
| Conductor Diameter | 0.025 In. |
| Conductor Material | Bare Copper |
| Conductor Size | 20 Awg |
| Conductor Stranding | Solid |
| Conductor Type | Solid |
| Dielectric Material | Fpe-Foamed (Cellular) Polyethylene |
| Enclosure Type | Lanscape (Cch/Wch) |
| Fire Rating | Plenum |
| Flooded | No, Not Flooded Over Braid |
| Frequency | 1000Mhz |
| Impedance | 53 |
| Indoor Or Outdoor Use | Indoor |
| Inductance | 0.07 ?h/Ft. |
| Insulation Diameter | 0.107 In. |
| Insulation Material | Fep-Fluorinated Ethylene Propylene |
| Jacket Color | Natural |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacket Rating | Cmp |
| Length | 1000 Ft. |
| Manufacturer Listed Application | Wireless Microphones, 2-Way Radios, Amateur (Ham) Radio, Low Power Fm, Gps, Rfid, Transmission |
| Nominal Cable Diameter | 0.159 In. |
| Nominal O.D. | 4.04 Mm |
| Operating Frequency | 1 To 1000Mhz |
| Outdoor | No, Not Outdoor Grade Material |
| Package Type | Crate Reel |
| Plenum | Plenum |
| Product Type | Wireless Transmission Coaxial Cable |
| Pulling Tension | 47 Lb. |
| Rg Type | Rg-58 |
| Rating | Cmp |
| Resistance | 10.1 Ohm/1000 Ft. Dc |
| Rohs Compliant | Yes |
| Screen/Shield Type | Braid Only |
| Shield Coverage | 95% |
| Shield Material | 95% Tinned Copper Braid |
| Shield Type | Tinned Copper Braid |
| Shield | 95% Tc Braid |
| Spec/Stnd Nec | Not Listed By Ul Under Nec |
| Temperature Rating | 0 To 75 Deg C |
| Tensile Strength | 38 Lbs. |
| Voltage Rating | 300 V |
| Voltage | 300 V |
| Weight Lbs./1,000 Ft. | 24 |
| Environmental Suitability | Indoor - Plenum, Indoor |
