Brand: Belden
|
SKU:
B8241A-1000

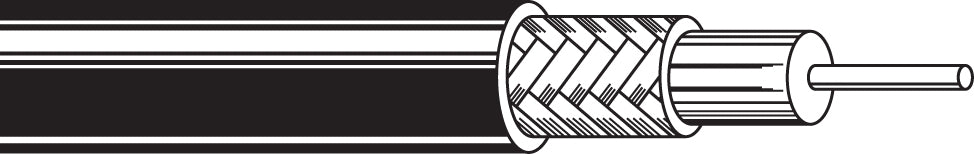

Belden 8241A 0101000 | Video Cable, RG59, 23 AWG, Solid, 1, 1000 ft. L, Black, CMG
Regular price
$1,188.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8241A 0101000 | Video Cable, RG59, 23 AWG, Solid, 1, 1000 ft...
Regular price
$1,188.58
Unit price
Brand: Belden
|
SKU:
B8241A-1000
Regular price
$1,188.58
Unit price
Shipping calculated at checkout.
Description
Description
Belden 8241A 0101000 | Video Cable, RG59, 23 AWG, Solid, 1, 1000 ft. L, Black, CMG
Video Cable; RG59; 23 AWG; Solid; 1 Conductor; Bare Copper Covered Steel; 1000 ft. Length; Black PVC Jacket; 1000MHz; Foam PE Insulation; CMG; 30 V, 300 V; Braid; Bare Copper Shield; -40 to +75 C; 74 lb.; 49 Ohm/1000 ft. DC
Specifications
Specifications
Belden - 8241A 0101000 - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial and DS3 Cable
- Coaxial Cable
Belden - 8241A 0101000 - Specifications
| Manufacturer Name | Belden |
|---|---|
| Manufacturer Part Number | 8241A 0101000 |
| Item Description | Video Cable, RG59, 23 AWG, Solid, 1, 1000 ft. L, Black, CMG |
| Approx. Wt. Lb./1,000 Ft. | 42 |
| Attenuation | 13.2 Db/100 Ft. |
| Bend Radius | 2.5 In. |
| Braid % | 95% Braid Coverage |
| Braid Matl | Bare Copper |
| Csa | Ft1 Vertical Flame Test |
| Cable/Wire Type | Rg59 |
| Capacitance | 20.5 Pf/Ft. |
| Coax Construction | Coaxial |
| Coax Type | Rg59 |
| Conductor Awg | 23 Gauge Awg |
| Conductor Count | 1 Conductor |
| Conductor Diameter | 0.0230 Inches |
| Conductor Material | Bare Copper Covered Steel |
| Conductor Size | 23 Awg |
| Conductor Stranding/Dia. Awg &Amp Type | 1/0.023/23/Ccs |
| Conductor Type | Solid |
| Dielectric Material | Srsfpe-Flame Retardant Semi Foam Pe |
| Flooded | No Not Flooded Over Braid |
| Frequency Rating | 1000Mhz |
| Imped. Ohms | 75 |
| Impedance | 75 Ohm |
| Indoor Or Outdoor Use | Indoor |
| Inductance | 0.112 µh/Ft. |
| Insulation Material (O.D. In.) | Frfpe/0.146 |
| Insulation Material | Fpe - Foamed Polyethylene |
| Insulation | Foam Pe |
| Jacket Color | Black |
| Jacket Material Color (O.D. In.) | Pvc/Blk/0.242 |
| Jacket Material | Pvc |
| Jacket Rating | Cmg |
| Jacketing Material | Pvc-Polyvinyl Chloride |
| Length | 1000 Ft. |
| Material | Copper Clad Steel |
| Operating Frequency | 1 To 1000 Mhz |
| Outdoor | Yes Is Outdoor Grade Material |
| Plenum | General Purpose (Cm, Cmg, Cmx) |
| Product Type | Analog Video Cable |
| Pulling Force | 74 Lb. |
| Rating | Cmg |
| Resistance | 49 Ohm/1000 Ft. Dc |
| Rg Type | Rg59 |
| Rohs Compliant | Yes |
| Screen/Shield Type | Braid Only |
| Shield Material | Bare Copper |
| Shield Type | Braid |
| Shield | 95% Bc Braid |
| Temperature Rating | -40 To +75 C |
| Voltage Rating | 300 V |
| Voltage | 30 V, 300 V |
