Brand: Belden
|
SKU:
B82723-DY0

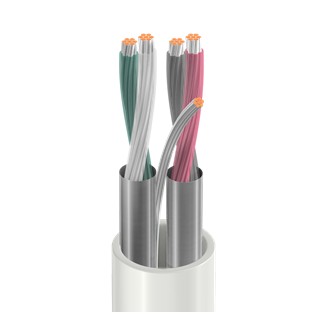

Belden 82723 8775000 | Audio, Control & Instrument Cable, #22-2 Pair, FEP, Indiv. Foil, LS-PVC Jacket, CMP
Regular price
$3.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 82723 8775000 | Audio, Control & Instrument Cable, #22-2...
Regular price
$3.98
Unit price
Description
Description
Belden 82723 8775000 | Audio, Control & Instrument Cable, #22-2 Pair, FEP, Indiv. Foil, LS-PVC Jacket, CMP
Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, FEP insulation, twisted pairs, individually shielded with Beldfoil® (100% coverage), 24 AWG stranded tinned copper drain wire, Flamarrest® jacket, plenum rated.
Specifications
Specifications
Belden - 82723 8775000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 2 |
| Stranding | 7x30 |
| UL Temperature | 90°C |
| Stationary Min. | 1.5 in (38 mm) |
| Installation Min. | 1.5 in (38 mm) |
| Max. Pull Tension | 46 lbs (21 kg) |
| Bulk Cable Weight | 19 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 8723 |
| Conductor Count | 2 Pairs |
| Conductor Material | Tinned Copper |
| Conductor Size | 22 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | Fep-Fluorinated Ethylene Propylene |
| Jacket Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Plenum |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Indivl/Foil Side &Amp Drain Out |
| UNSPC Code | 26121613 |
