Brand: Belden
|
SKU:
B82760-PR
Belden 82760 8775000 | Electronic Cable, 2 Conductor #18 Stranded TC, FEP Insulation, OS, PVC Jacket, CMP
Regular price
$4.44
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 82760 8775000 | Electronic Cable, 2 Conductor #18 Stranded T...
Regular price
$4.44
Unit price
Brand: Belden
|
SKU:
B82760-PR
Regular price
$4.44
Unit price
Description
Description
Belden 82760 8775000 | Electronic Cable, 2 Conductor #18 Stranded TC, FEP Insulation, OS, PVC Jacket, CMP

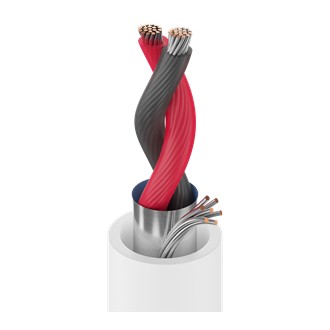

Electronic Cable, 2 Conductor 18AWG (19x30) Tinned Copper, FEP Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CMP.
Specifications
Specifications
Belden - 82760 8775000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Stranding | 19x30 |
| UL Temperature | 75°C |
| Stationary Min. | 1.46 in (37.1 mm) |
| Installation Min. | 1.46 in (37.1 mm) |
| Max. Pull Tension | 62 lbs (28 kg) |
| Bulk Cable Weight | 20 lbs/1000ft |
| Environmental Suitability | Indoor - Plenum, Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 8760 |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | Fep-Fluorinated Ethylene Propylene |
| Jacket Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Plenum |
| Screen/Shield Type | Foil Shielded - Alum/Mylar |
| Screen/Shield | Yes |
| Shield Construction | Overall Shield &Amp Drain |
| UNSPC Code | 26121613 |
