Brand: Belden
|
SKU:
B82841-5X

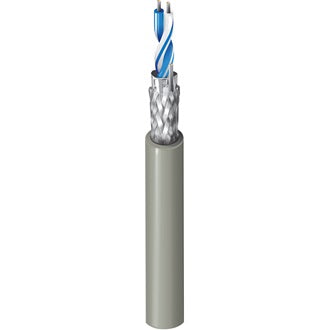

Belden 82841 8775000 | RS485, 1 Pair #24 Stranded TC, FEP Insulation, OS+TC Braid, PVC Jacket, CMP
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 82841 8775000 | RS485, 1 Pair #24 Stranded TC, FEP Insulatio...
Regular price
$8.10
Unit price
Description
Description
Belden 82841 8775000 | RS485, 1 Pair #24 Stranded TC, FEP Insulation, OS+TC Braid, PVC Jacket, CMP
Low cap 24 AWG stranded (7x32) TC conductors, plenum, foam FEP insulation, twisted pairs, overall Beldfoil (100% coverage) + TC braid shield (90% coverage), 24 AWG stranded TC drain wire, Flamarrest jacket.
Specifications
Specifications
Belden - 82841 8775000 - Specifications
| Element | Pair(s) |
|---|---|
| No. of Elements | 1 |
| Stranding | 7x32 |
| UL Temperature | 75°C |
| Stationary Min. | 2.25 in (57.2 mm) |
| Installation Min. | 2.25 in (57.2 mm) |
| Max. Pull Tension | 45.7 lbs (20.7 kg) |
| Bulk Cable Weight | 26 lbs/1000ft |
| Environmental Suitability | Indoor |
| Flammability / Reaction to Fire | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR Compliance | CPR Euroclass: Eca |
| NEC / UL Compliance | Article 800, CMP |
| CEC / C(UL) Compliance | CMP |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance | UKCA Mark |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Non-Plenum Number | 9841, 9841ZH |
| Conductor Count | 1 Pair |
| Conductor Material | Tinned Copper |
| Conductor Size | 24 Awg (American Wire Gauge) |
| Conductor Type | Stranded Conductor |
| Fire Rating | Plenum |
| Insulation Material | Ffep-Foamed Fep |
| Jacket Material | LsPVC-Low Smoke Polyvinyl Chloride |
| Nec Rating | Ul Listed Art 800 Plenum |
| Screen/Shield Type | Braid Over Foil Shield |
| Screen/Shield | Yes |
| Shield Construction | Overall Foil &Amp Braid |
| UNSPC Code | 26121613 |
