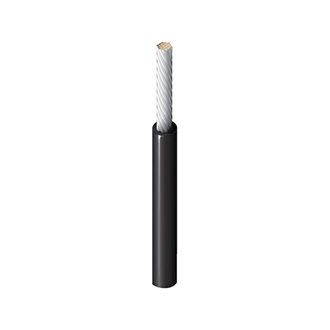

Belden 83004 0091000 | Lead Wire, #24 Stranded SPC, TFE Insulation,...
Regular price
$1.46
Unit price
Brand: Belden
|
SKU:
B83004-92
Regular price
$1.46
Unit price
Description
Description
Belden 83004 0091000 | Lead Wire, #24 Stranded SPC, TFE Insulation, AWM 1213
High Temp Plastic Lead Wire, 24AWG (7x32) Silver Plated Copper, TFE Insulation, AWM 1213 105C TYPE E MIL-W-16878/4 600V 200C.
Specifications
Specifications
Belden - 83004 0091000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 24 AWG |
| Stranding | 7x32 |
| UL Temperature | 200°C |
| Environmental Suitability | Indoor, Outdoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | VW-1 |
| AWM Compliance | AWM 1213 |
| NEMA Compliance | HP3 |
| Military Compliance | MIL-W-16878/4 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| Conductor Material | Silver Plated Copper |
| Conductor Size | 24 Awg (American Wire Gauge) |
| Conductor Stranding | 7 Strands In Each Conductor |
| Insulation Color | White |
| Insulation Material | Ptfe-Polytetrafluoroethylene |
| Mil Spec | Mil-W-16878/4 (Type E) |
| Product Type | M16878 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 200 Degrees Centigrade (393 F) |
| Ul Style | Ul Type Awm, Style 1213 |
| UNSPC Code | 26121539 |
