Belden 83023 | Lead Wire, #24 Stranded SPC, TFE Insulation, AWM 1180
Regular price
$2.88
Unit price
Brand: Belden
|
SKU:
B83023-95
Regular price
$2.88
Unit price
Description
Description

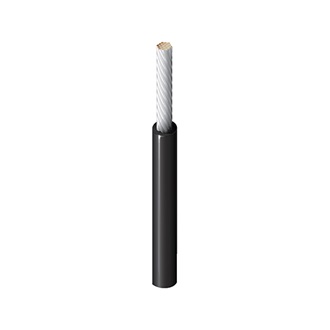

Belden 83023 | Lead Wire, #24 Stranded SPC, TFE Insulation, AWM 1180
High Temp Plastic Lead Wire, 24AWG (19x36) Silver Plated Copper, TFE Insulation, AWM 1180 300V 200C TYPE EE MIL-W-16878/5 1000V 200C.
Specifications
Specifications
Belden - 83023 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 24 AWG |
| Stranding | 19x36 |
| UL Temperature | 200°C |
| Environmental Suitability | Indoor, Outdoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | VW-1 |
| AWM Compliance | AWM 1180 |
| NEMA Compliance | HP3 |
| Military Compliance | MIL-W-16878/5 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
Documents and Downloads
Documents and Downloads
