Brand: Belden
|
SKU:
B83025-4

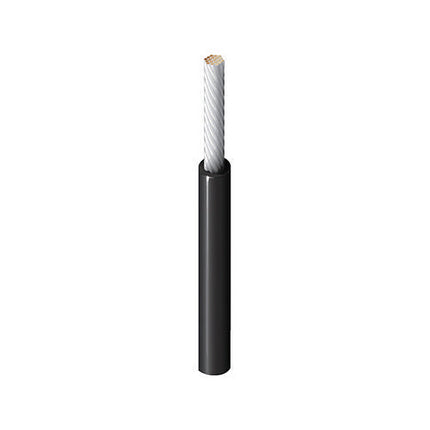

Belden 83025 0041000 | Lead Wire, #22 Str SPC, TFE Ins, AWM 1180
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 83025 0041000 | Lead Wire, #22 Str SPC, TFE Ins, AWM 1180
Regular price
$3.00
Unit price
Description
Description
High Temp Plastic Lead Wire, 22AWG (7x30) Silver Plated Copper, TFE Insulation, AWM 1180 300V 200C TYPE EE MIL-W-16878/5 1000V 200C
Specifications
Specifications
Product Overview
| Suitable Applications | high temperature, inter-connection circuits, internal wiring of computer and electronic equipments, (Type EE) MIL-W-16878/5 applications |
|---|
Temperature Range
| Non-UL Temp Rating | 200°C |
|---|---|
| UL Temp Rating | 200°C |
Mechanical Characteristics
| Bulk Cable Weight | 4.3 lbs/1000ft |
|---|---|
| Min Bend Radius/Minor Axis | 0.24 in |
Standards
| NEMA Compliance | HP3 |
|---|---|
| Military Compliance | MIL-W-16878/5 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV) | Yes |
|---|---|
| EU Directive 2003/96/EC (BFR) | Yes |
