Belden 83029 0091000 | Lead Wire, #18 Stranded SPC, TFE Insulation,...
Regular price
$4.06
Unit price
Brand: Belden
|
SKU:
B83029-96
Regular price
$4.06
Unit price
Description
Description

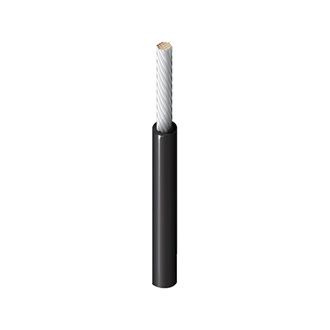

Belden 83029 0091000 | Lead Wire, #18 Stranded SPC, TFE Insulation, AWM 1180
High Temp Plastic Lead Wire, 18AWG (19x30) Silver Plated Copper, TFE Insulation, AWM 1180 300V 200C TYPE EE MIL-W-16878/5 1000V 200C.
Specifications
Specifications
Belden - 83029 0091000 - Specifications
| Element | Conductor(s) |
|---|---|
| No. of Elements | 1 |
| Size | 18 AWG |
| Stranding | 19x30 |
| UL Temperature | 200°C |
| Environmental Suitability | Indoor, Outdoor |
| Sustainability | CA Prop 65 |
| Flammability / Reaction to Fire | VW-1 |
| AWM Compliance | AWM 1180 |
| NEMA Compliance | HP3 |
| Military Compliance | MIL-W-16878/5 |
| European Directive Compliance | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance | China RoHS II (GB/T 26572-2011) |
| Conductor Material | Silver Plated Copper |
| Conductor Size | 18 Awg (American Wire Gauge) |
| Conductor Stranding | 19 Strands In Each Conductor |
| Insulation Color | White |
| Insulation Material | Tfe-Tetrafluoroethylene &Amp Ptfe |
| Mil Spec | Mil-W-16878/5 (Type Ee) |
| Product Type | M16878 |
| Rohs Compliant | Yes |
| Shielded | Not Shielded |
| Temperature Rating | 200 Degrees Centigrade (393 F) |
| Ul Style | Ul Type Awm, Style 1180 |
| UNSPC Code | 26121539 |
