Brand: Belden
|
SKU:
B8303-100

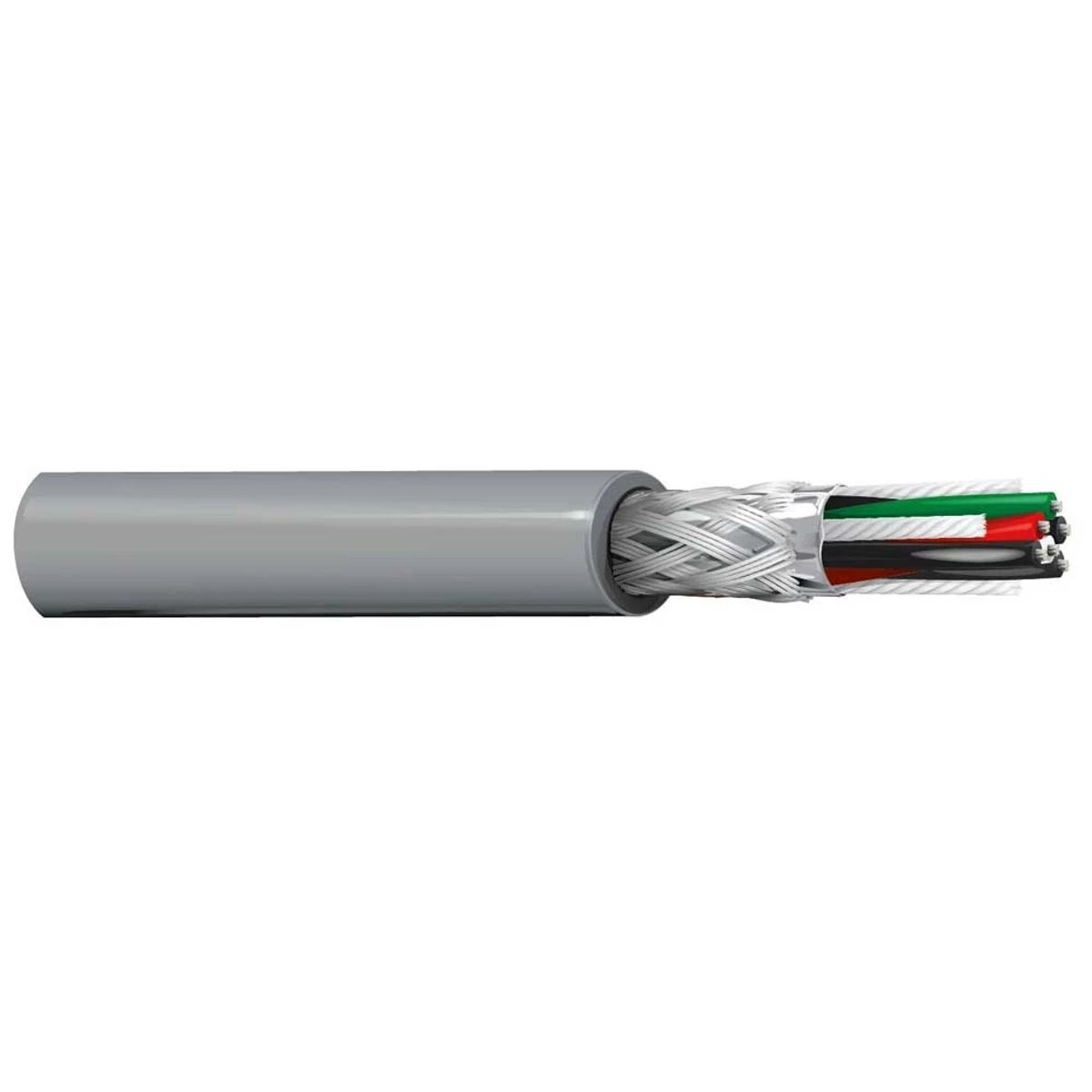

Belden 8303 060100 | 8303 Series, Shielded Electronic Cable, Polyvinyl Chloride, 22 AWG, 300V, Chrome, 100 ft.
Regular price
$8.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Belden 8303 060100 | 8303 Series, Shielded Electronic Cable, Polyvi...
Regular price
$8.66
Unit price
Description
Description
The 8303 060100 is a 3-pair Shielded Cable with 22AWG stranded tinned copper conductors and semi rigid PVC insulation.
Key Features
- 355.856N Maximum recommended pulling tension
- 206.703pF/m Nominal capacitance conductor to conductor
- 60% Nominal velocity of propagation
- 49.215?/km at 20°C Nominal conductor DC-resistance (DCR)
- -30 to 80°C Operating temperature range
Specifications
Specifications
Additional Specifications
| ECCN | EAR99 |
|---|---|
| Country of Origin | US - United States |
| UNSPSC | 26121600 |
| Series | 8303 Series |
| Length | 100 ft. |
| Cable Type | Non-Plenum |
| Conductor Size | 22 AWG |
| Conductor Material | Tinned Copper |
| Jacket Material | Polyvinyl Chloride (Low Smoke) |
| Insulation Material | Semi-Rigid Polyvinyl Chloride |
| No. of Conductors | 6 |
| Shielded | Foil with Braid Shield |
